SenCtrl 0-60 Psi Pool Filter Pressure Gauge – 2-Inch Dial, Back Mount, Stainless Steel

Overview

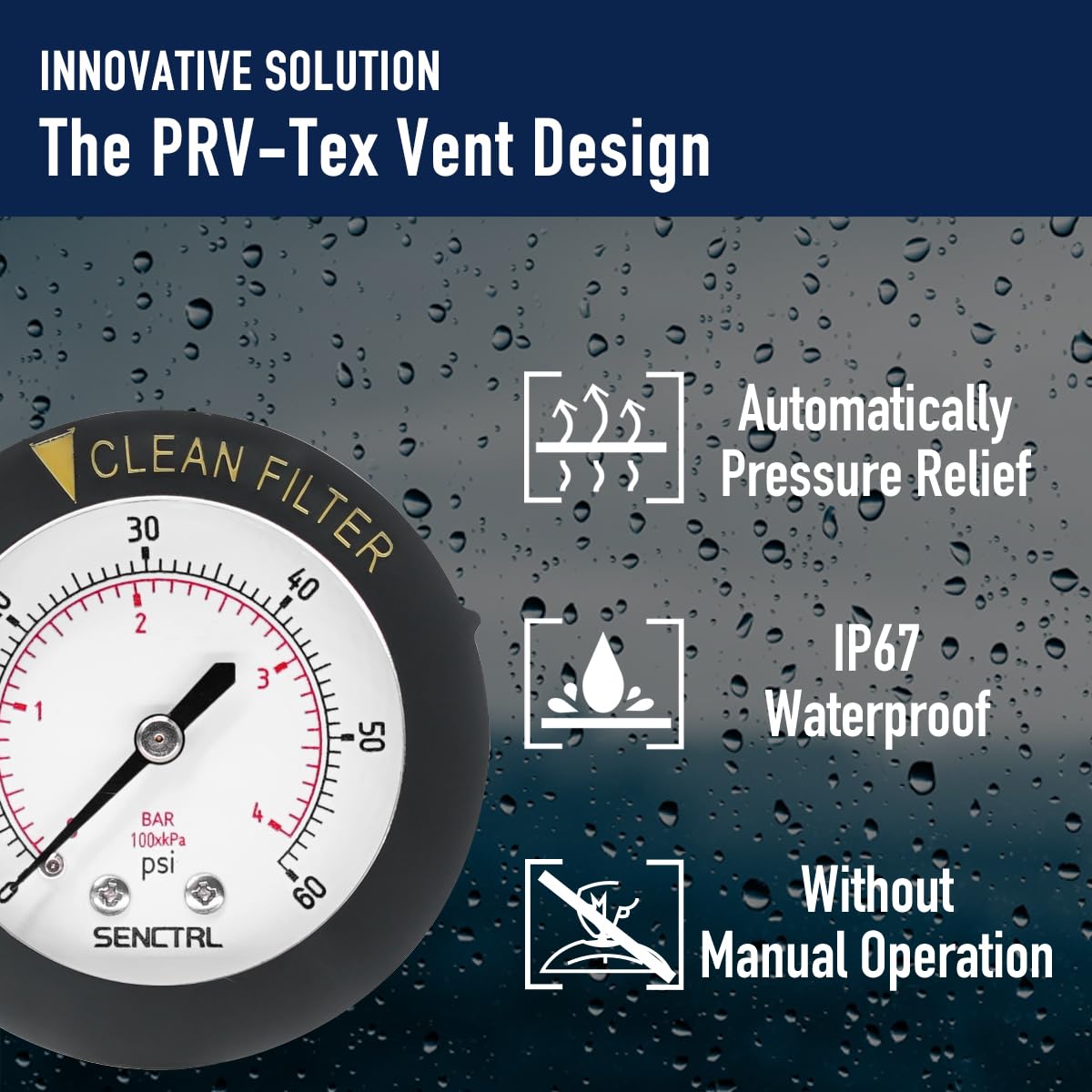

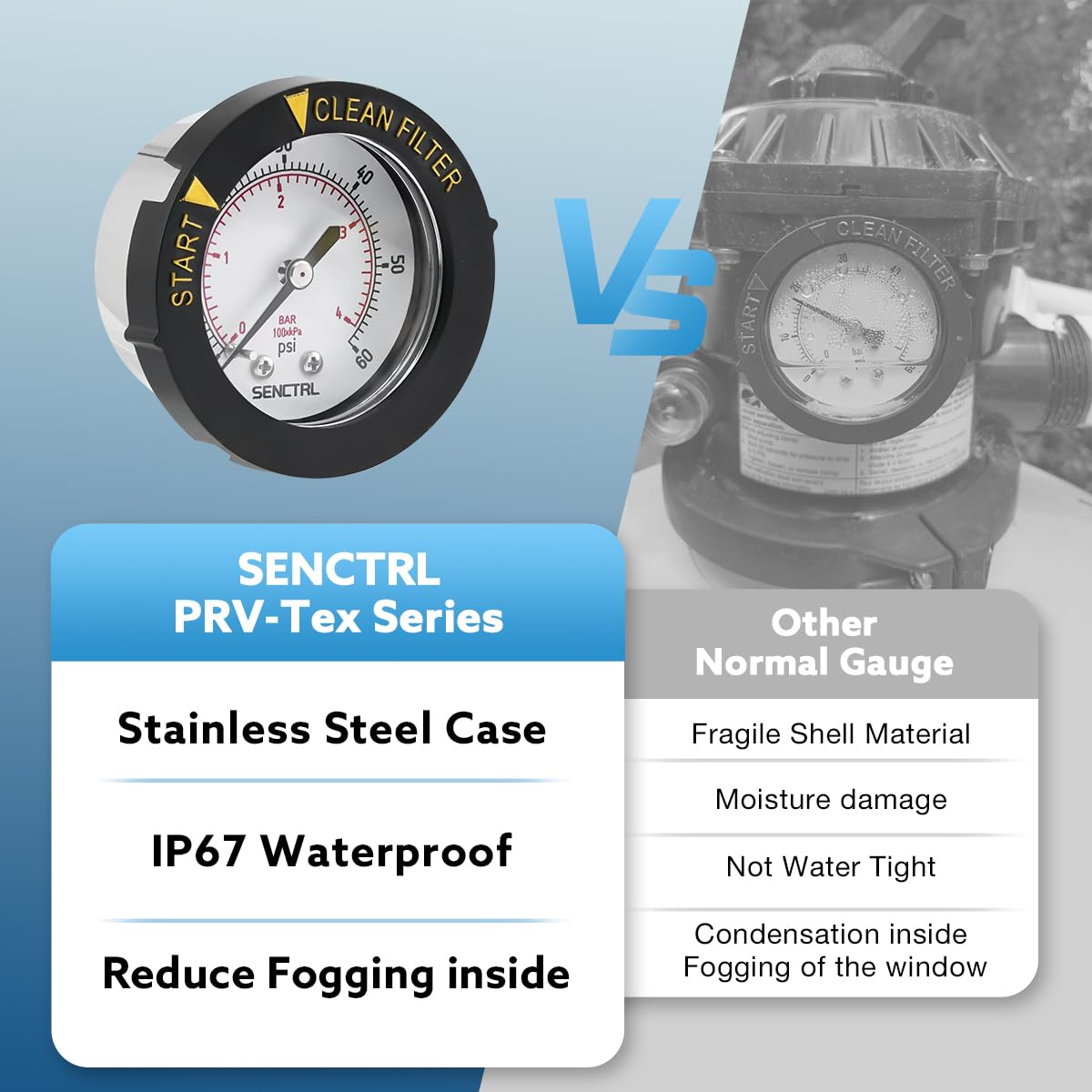

The SenCtrl 0-60 Psi Pool Filter Pressure Gauge is built to support water-centric systems with a sturdy, corrosion‑resistant design. Part of the PRV-Tex Series, it features a circular dial encased in a 304 stainless steel housing for robust protection in humid or outdoor environments. IP67 waterproofing helps minimize internal condensation and window fogging, keeping readings readable even in damp or splash-prone areas.

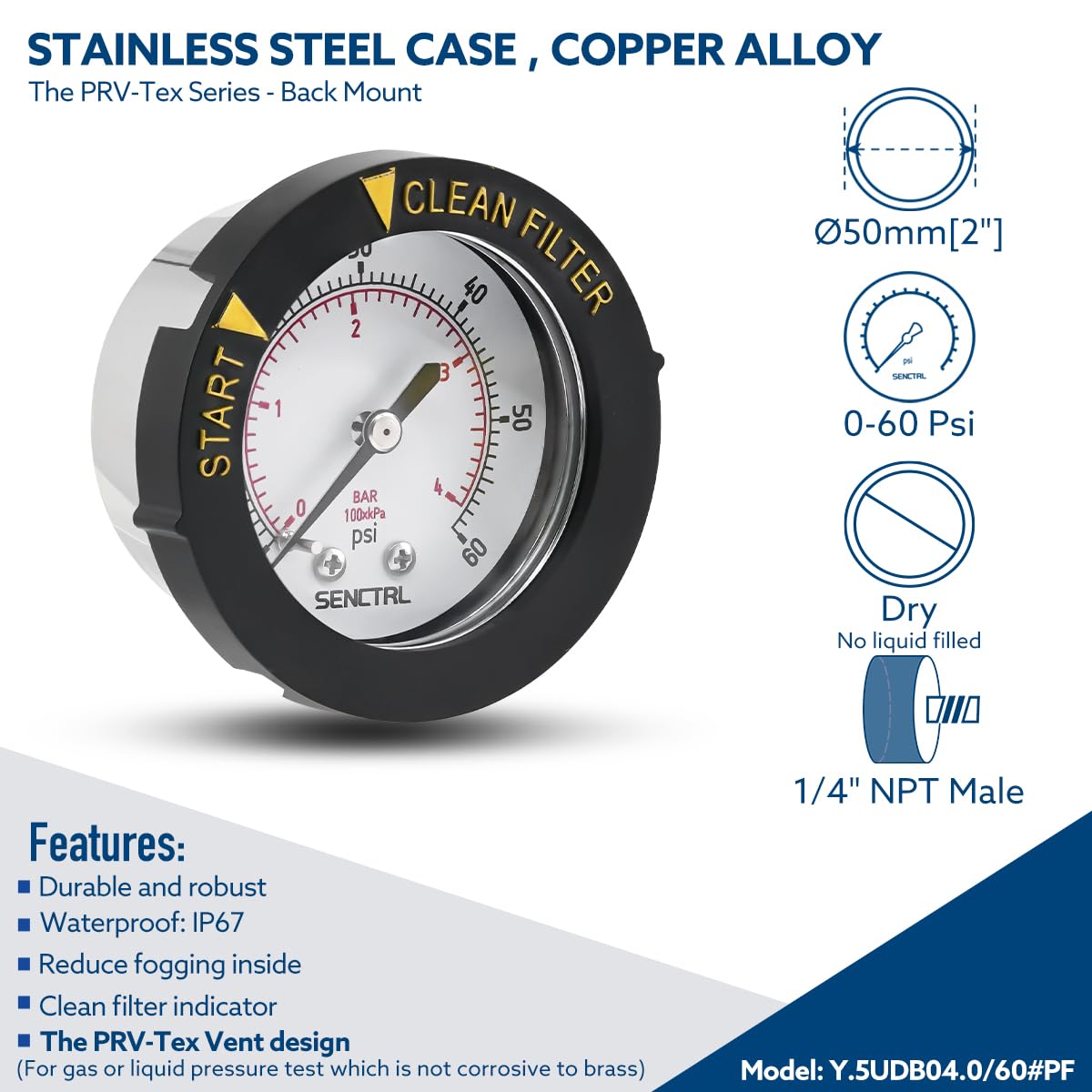

Wetted parts are crafted from brass and stainless steel, enabling reliable measurements for non-corrosive liquids and gases such as water and oil. This gauge is compatible with a swimming pool sand filter, spa pump, air relief valve, and water filter pressure testers, making it a versatile tool for various water system checks.

Key features at a glance

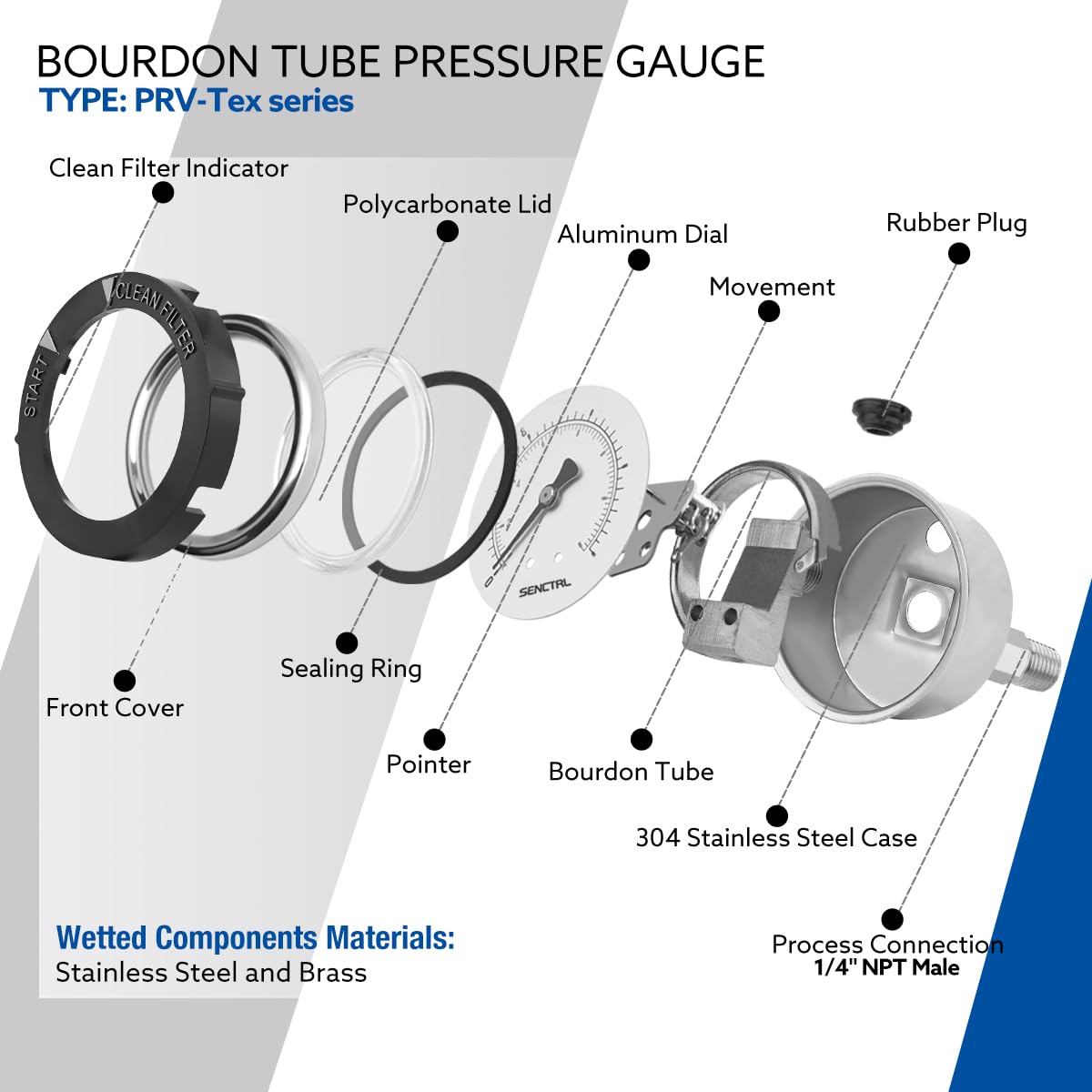

• Clean filter indicator with a rotatable baffle marking Start and Clean Filter to signal when service might be needed.
• Dual scale displays 0-60 psi and 0-4 bar for quick reference across measurement units.

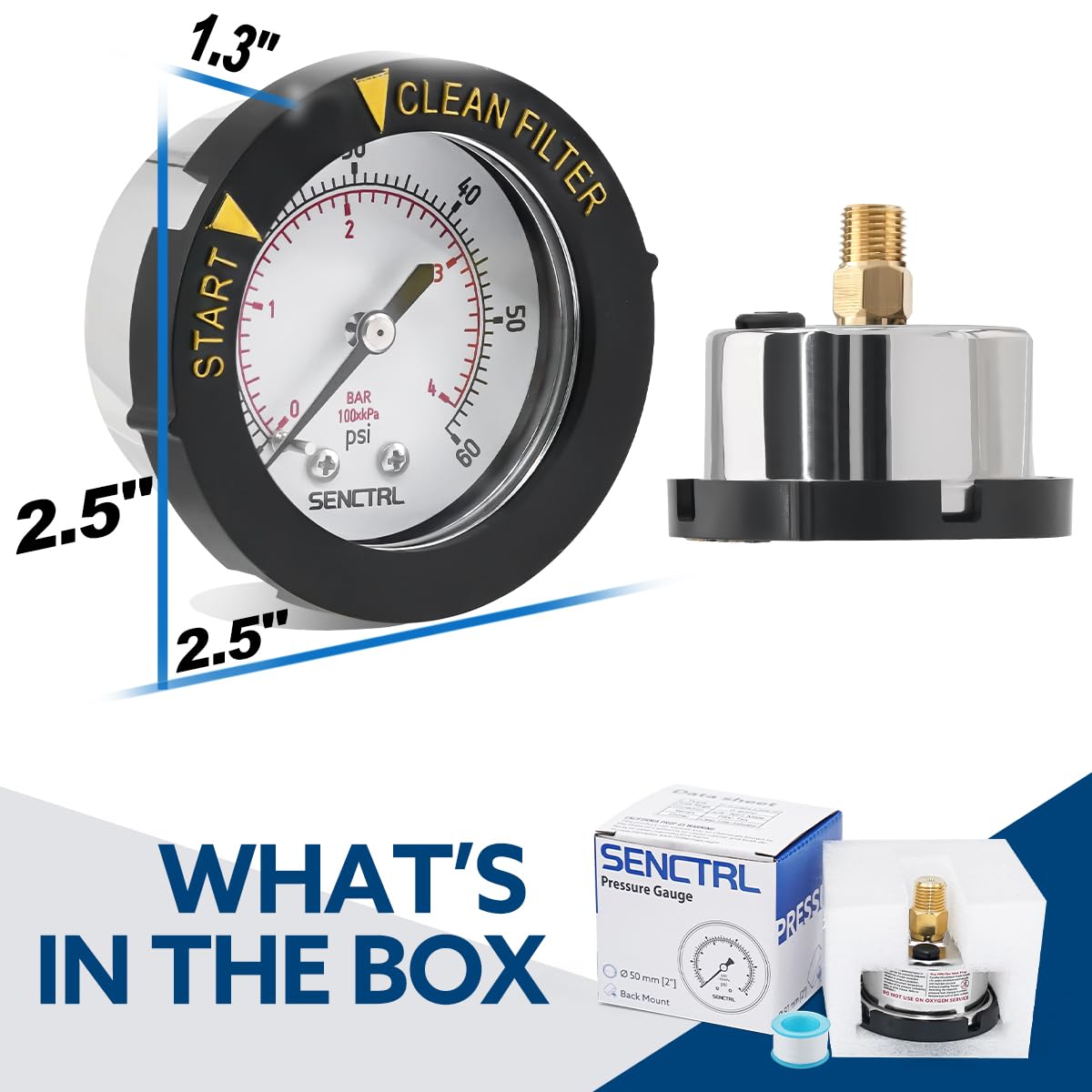

• Back mount connection with 1/4" NPT thread for standard, secure installation.

Readability and accuracy

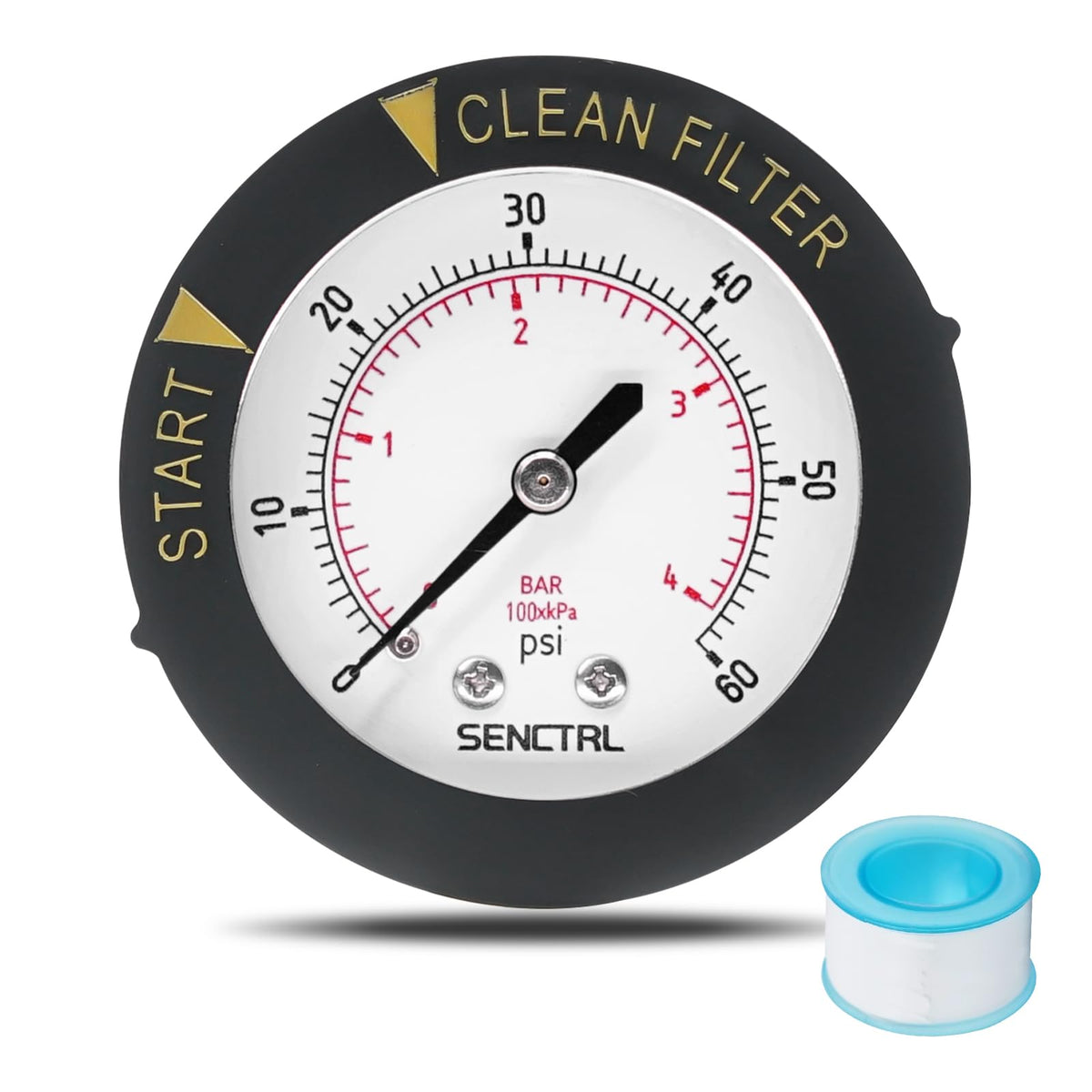

The dial delivers clear readings with an accuracy shown across the full range, typically within a small tolerance. The combination of a 2-inch dial and a weather-resistant casing makes it easy to monitor in daily pool or spa maintenance tasks.

Installation and practical uses

With its back-mount 1/4" NPT thread, the gauge fits common plumbing setups without adding complexity. This unit is well-suited for monitoring filtration pressure, assessing spa pump performance, and verifying water filter pressure in testing scenarios.

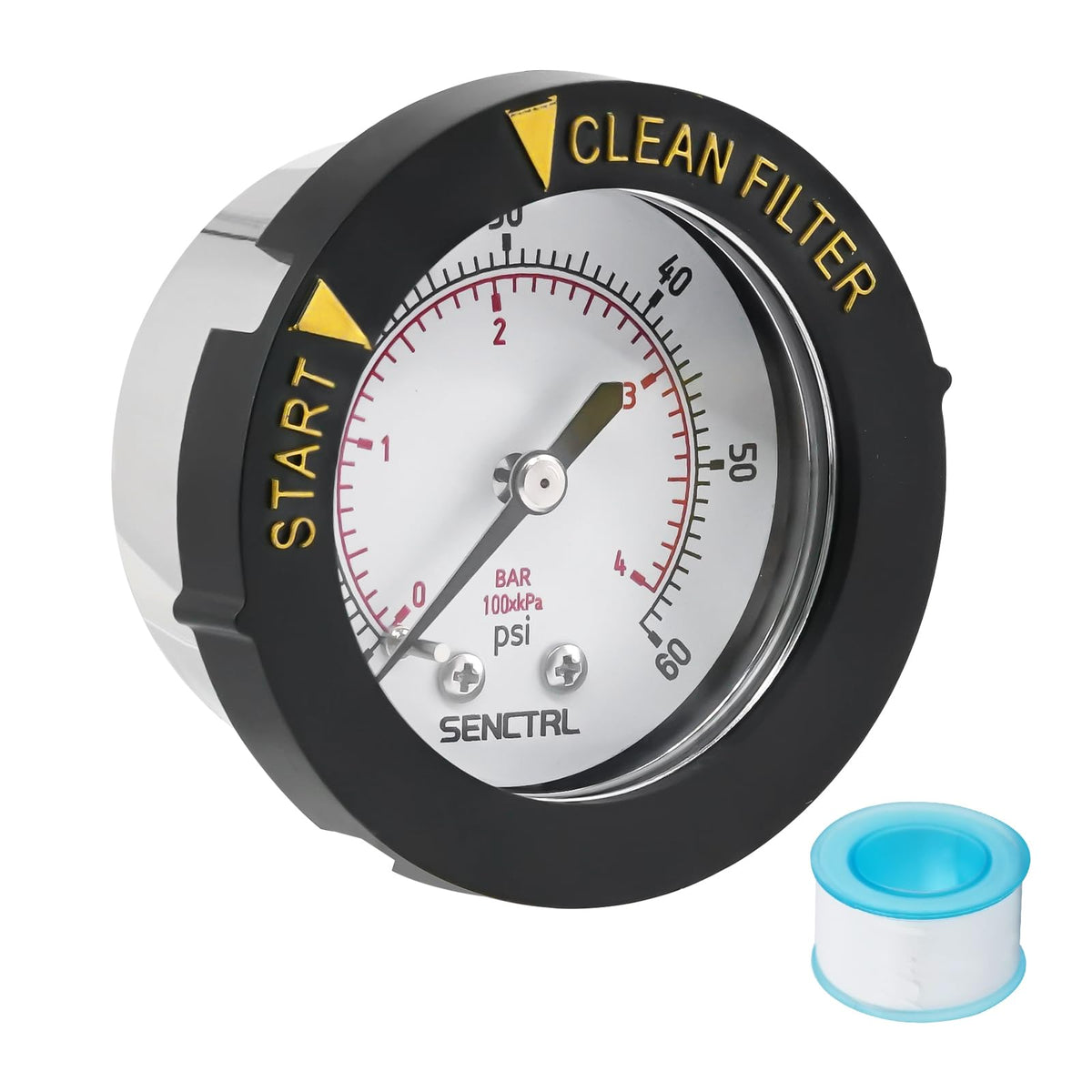

Suggested applications

• Swimming pool sand filter pressure monitoring
• Spa pump flow and pressure checks
• Water filter pressure testing and diagnostics
• Air relief valve pressure observation in water systems

Note: The gauge provides a practical, non-medical way to observe pressure trends and support regular maintenance decisions without implying guaranteed outcomes.
