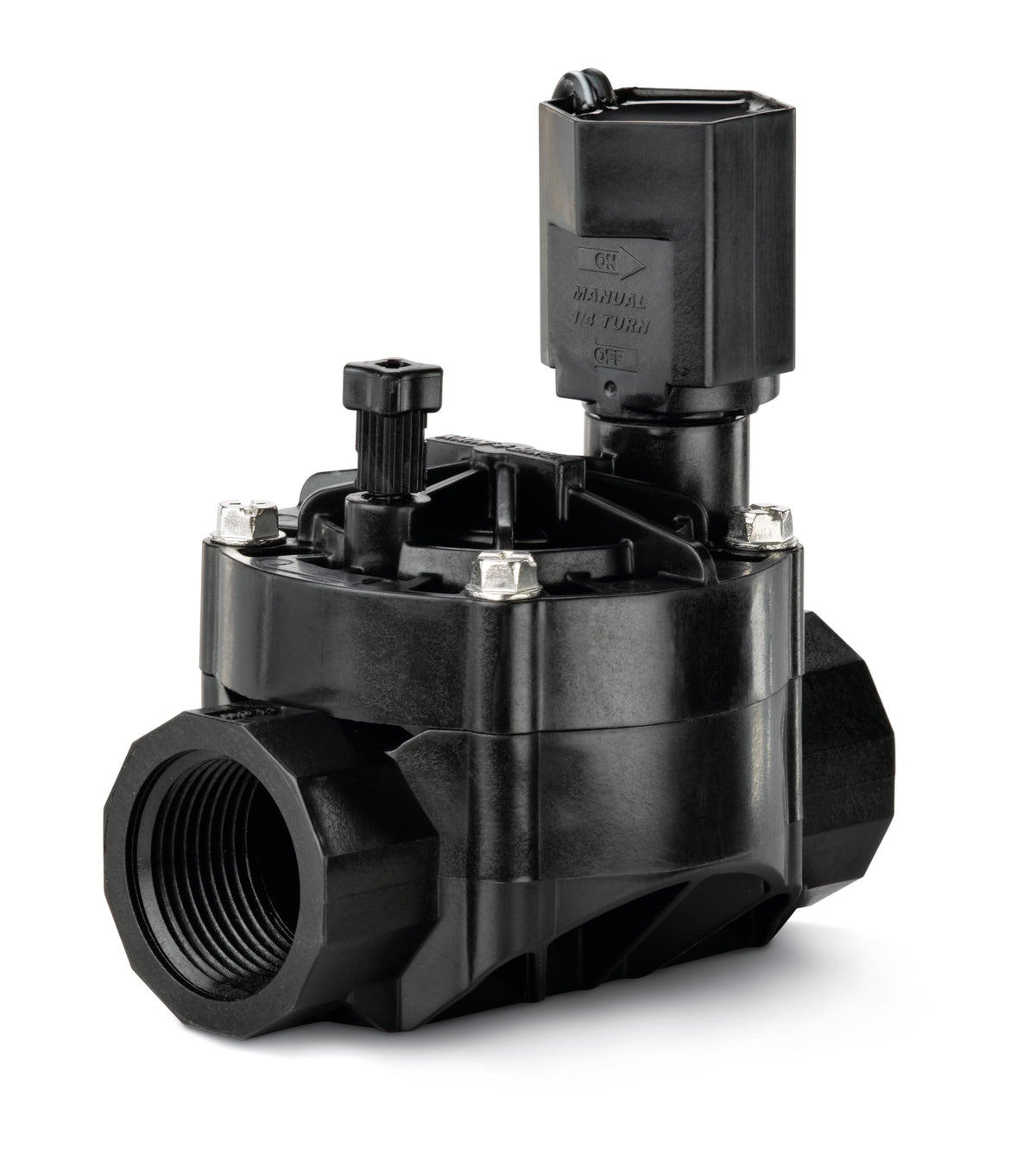

Rain Bird HV100FF High Value In-Line Valve — 1-inch Female Inlet/Outlet, Compact for Tight Installations

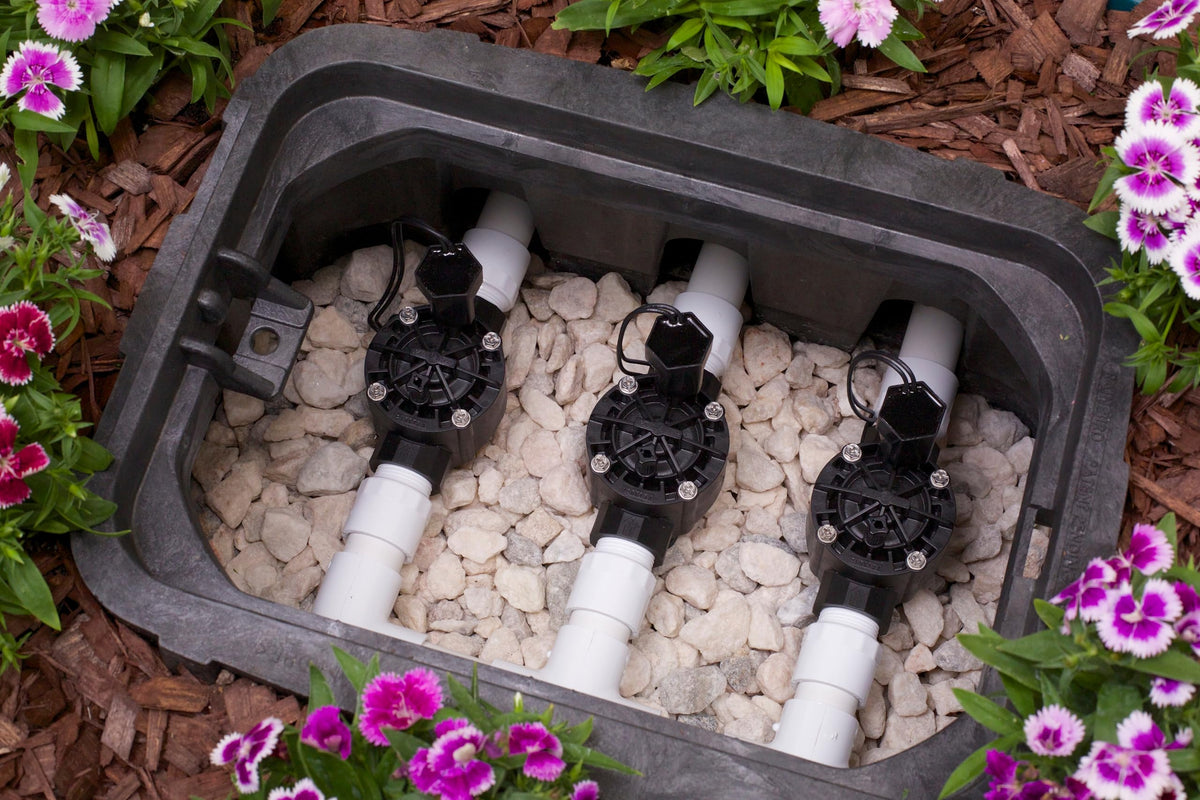

The Rain Bird HV100FF is a high-value, in-line irrigation valve designed to deliver reliable performance in compact spaces. With a 1-inch female threaded inlet and outlet, it nests neatly in tight valve boxes, helping you fit more valves where space is limited. The 2.54-inch spin radius creates a smaller footprint while maintaining full functionality, making this valve a practical choice for underground installations or when wiring and plumbing routes are constrained.

Durability and smooth operation

engineered for harsh environments, the HV100FF combines a glass-filled polypropylene body with a Buna-N diaphragm and a self-cleaning 90-mesh (200 micron) filter and a stainless-steel spring. This combination supports steady operation and resilience against debris, reducing maintenance needs over time. A patented eccentric diaphragm delivers a smoother closing action, helping to minimize water hammer and enhance reliability in busy irrigation networks.

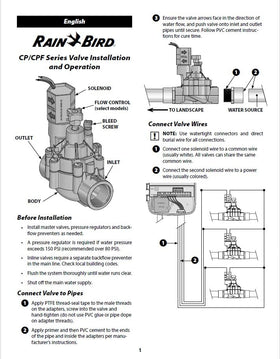

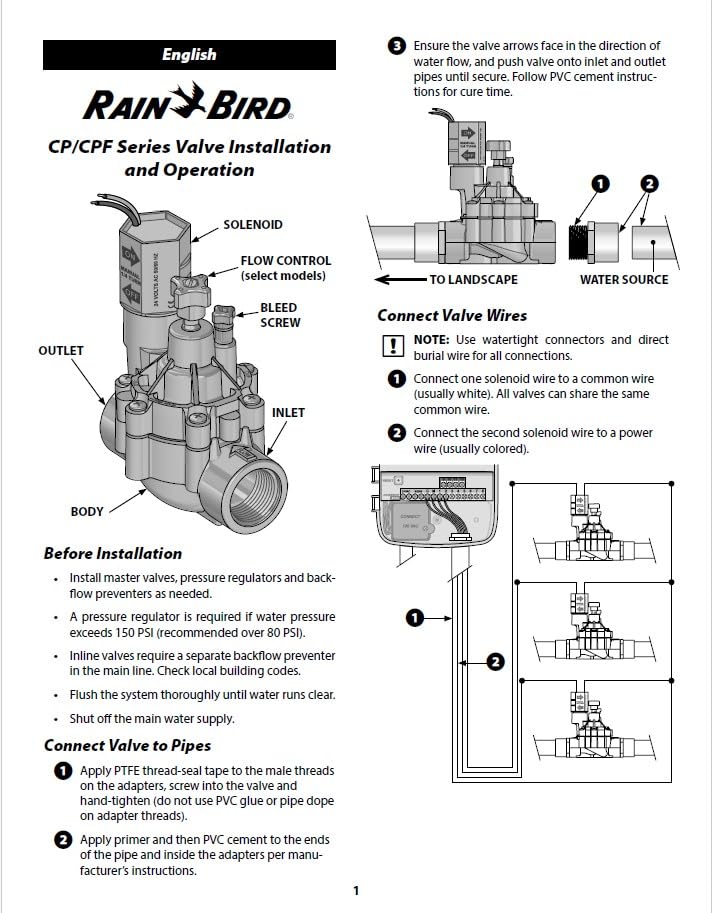

A unique reverse-flow design adds a critical safeguard: if the diaphragm fails, the valve closes to help prevent unwanted flooding in the pipeline. For installation ease, an external bleed screw lets you flush dirt and debris from the system during setup or maintenance, while an internal bleed design supports spray-free manual operation for precise control when needed.

Ease of service and wide compatibility

• Captive multi-drive screws simplify access and bonnet removal, speeding service in the field.
• Designed for below-ground installation, keeping the valve out of sight and away from playful hands.
• Works with any underground irrigation controller brand, offering flexible integration with existing systems.

Real-world benefits and use cases

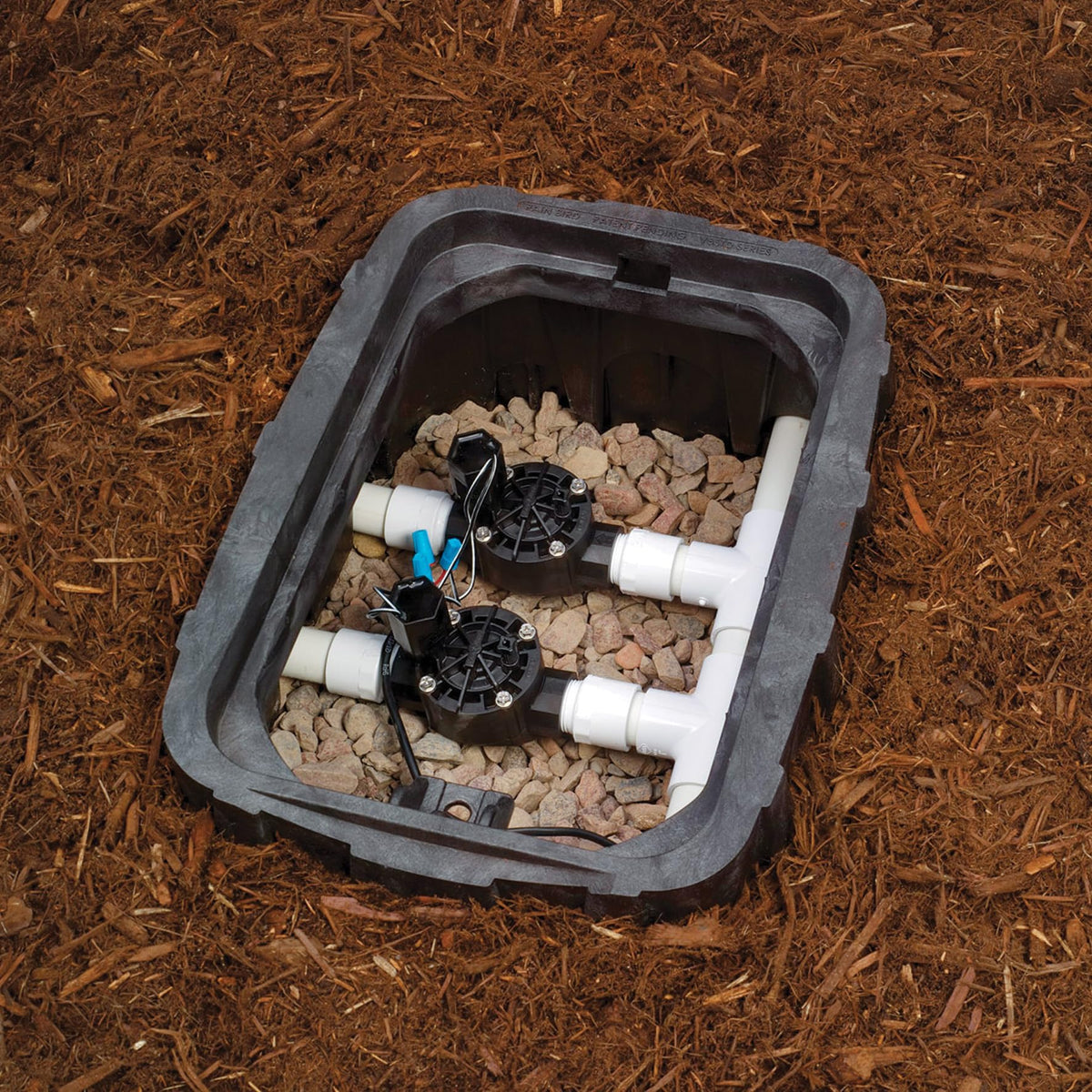

• Compact footprint supports installations where space is at a premium, such as crowded valve boxes or multi-valve valves wells.
• External and internal bleed options provide straightforward startup flushing and maintenance without spraying water everywhere.
• Rugged materials and a robust filtration system help sustain performance in outdoor, damp, or dusty environments.

Technical snapshot

• Pressure rating: 15–150 psi
• Electrical: 24 VAC, 50/60 Hz
• Flow: 0.2–30 GPM

Note: For inground installation, a backflow prevention device such as a PVB or double-check valve may be required to meet local codes. Rain Bird’s approach embodies the idea of efficient water use, guiding installation choices toward reliability and simplicity.
