Rain Bird DASASVF075 Professional Anti-Siphon Valve with Flow Control - 3/4 in. Female x Female

Overview

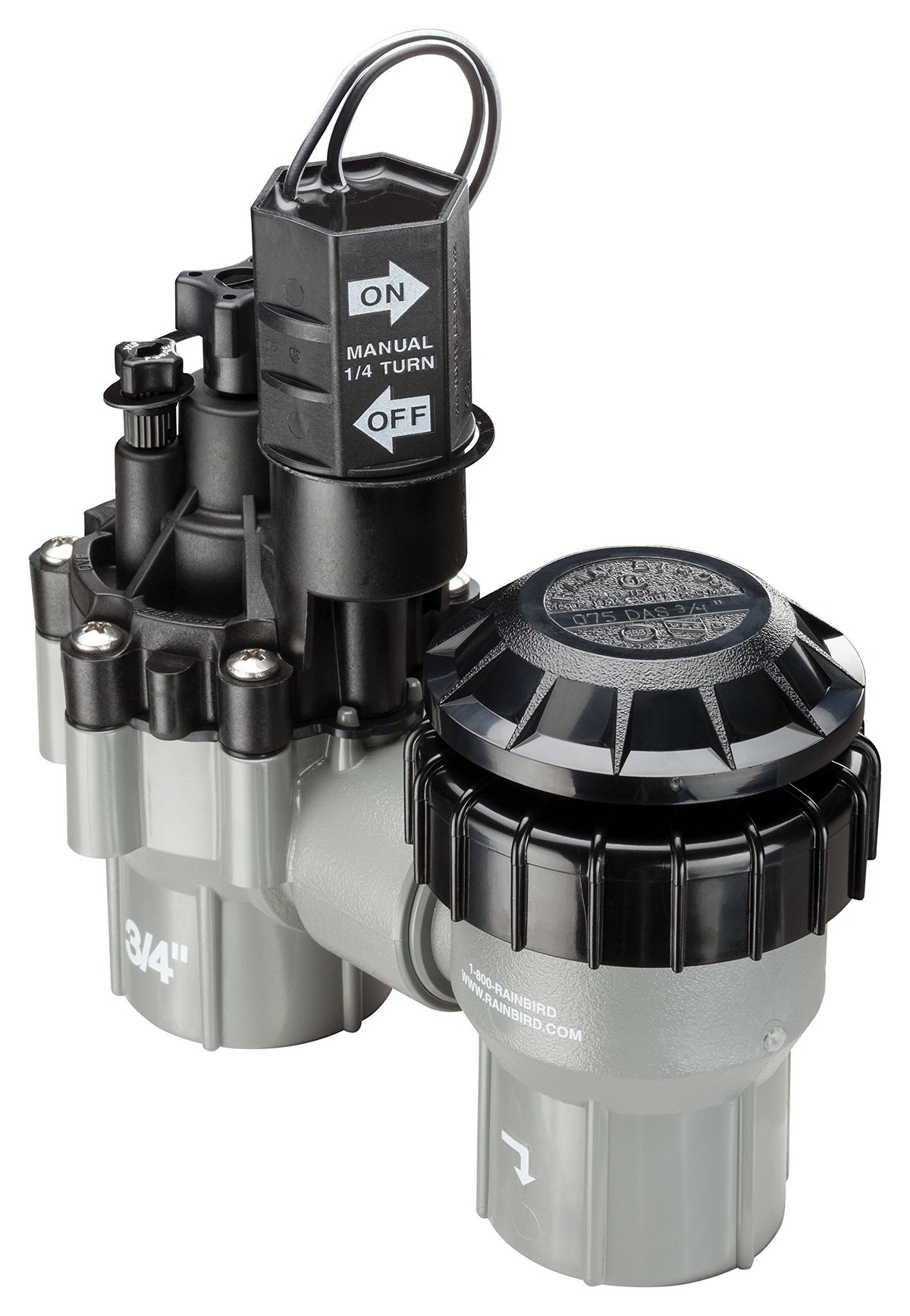

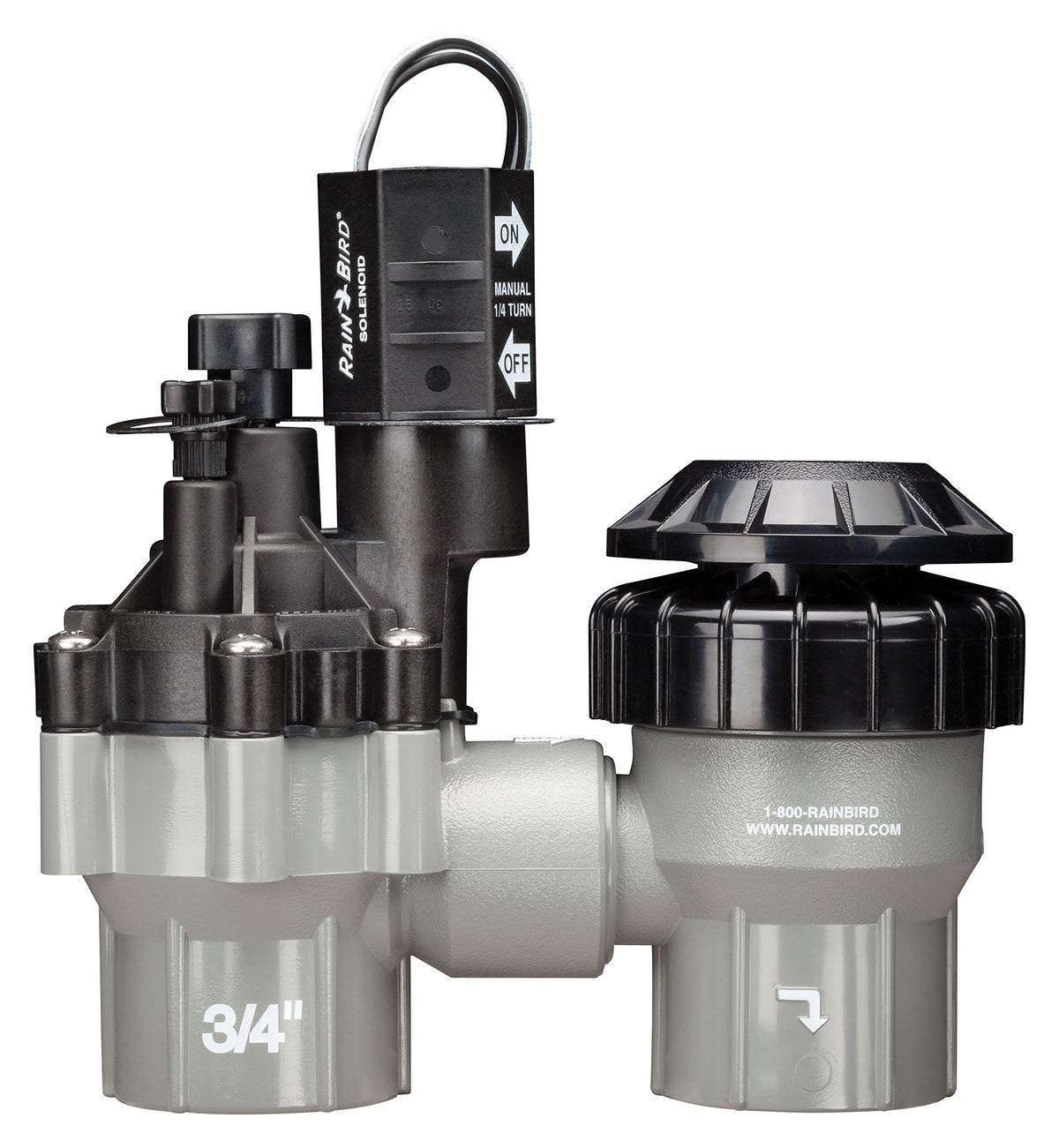

Rain Bird's DASASVF075 is a professional-grade anti-siphon valve designed for above-ground irrigation zones. It features a 3/4" female threaded inlet and outlet, a top-mounted flow control knob, and a reverse-flow design that helps limit water loss if the diaphragm encounters a fault. This valve works with standard 24-volt AC irrigation timers and controllers, making zone-by-zone management simple and predictable.

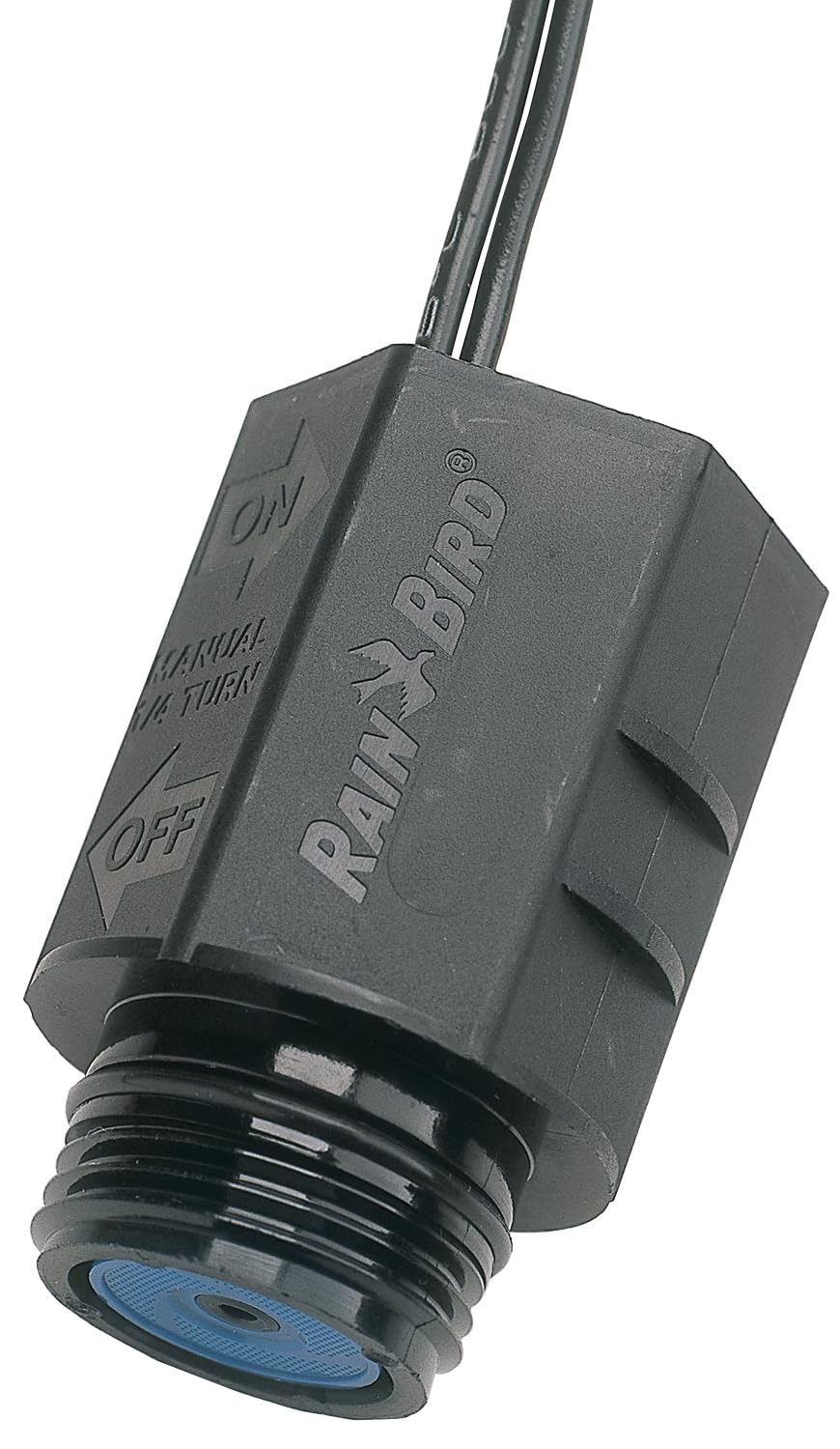

What sets this valve apart is its combination of durable construction and intelligent water management. The Buna-N diaphragm resists wear in challenging water conditions, while the built-in filter helps protect the mechanism from debris. An energy-efficient, low-power encapsulated solenoid with a captured plunger adds to long-term reliability, and the rugged housing with stainless steel screws is built for outdoor use.

Key benefits at a glance

• Professional-grade anti-siphon valve with adjustable flow for precise zone control
• Above-ground installation with a recommended 6" clearance above the highest sprinkler head
• Reverse-flow design reduces stress on the diaphragm, promoting reliable operation
• Energy-efficient solenoid with low power draw and durable construction
• Buna-N diaphragm and integrated water filter enhance performance in varied water conditions
• 3/4" female x female connections for straightforward retrofits
• Flow range 0.2 to 22 GPM; use a 200-mesh filter for flows under 3 GPM
• Stainless-steel screws and rugged housing support long-term outdoor use

Designed to meet industry standards, the valve is listed by IAPMO and ASSE and Canadian standards body approvals, reflecting its reliability for commercial and residential projects alike. The Rain Bird name stands behind a long legacy of water-saving innovations, under the banner The Intelligent Use of Water.

Installation and usage tips

• Install at least 6" above the highest sprinkler head on the line to prevent backflow
• Flush the system manually through the external bleed screw before startup
• For low flows or drip systems, install a 200-mesh filter before the valve
• Use with any 24V AC irrigation timer/controller for automated, zone-based scheduling

With its robust construction, clear flow adjustment, and dependable sealing, the DASASVF075 helps you balance zones for even coverage and reduce water waste. It’s a practical choice for landscapes, athletic fields, and commercial settings where consistent, efficient irrigation matters.
