Nixesky 100PCS Solar Panel Connector IP67 Waterproof - 50 Pairs with 2 Spanners (Male & Female)

Meet the Nixesky Solar Panel Connector set, built to simplify and secure outdoor PV wiring. This 100-piece kit includes 50 male-female connector pairs, 50 connector pins, and 2 sturdy spanners, designed for parallel and modular solar layouts.

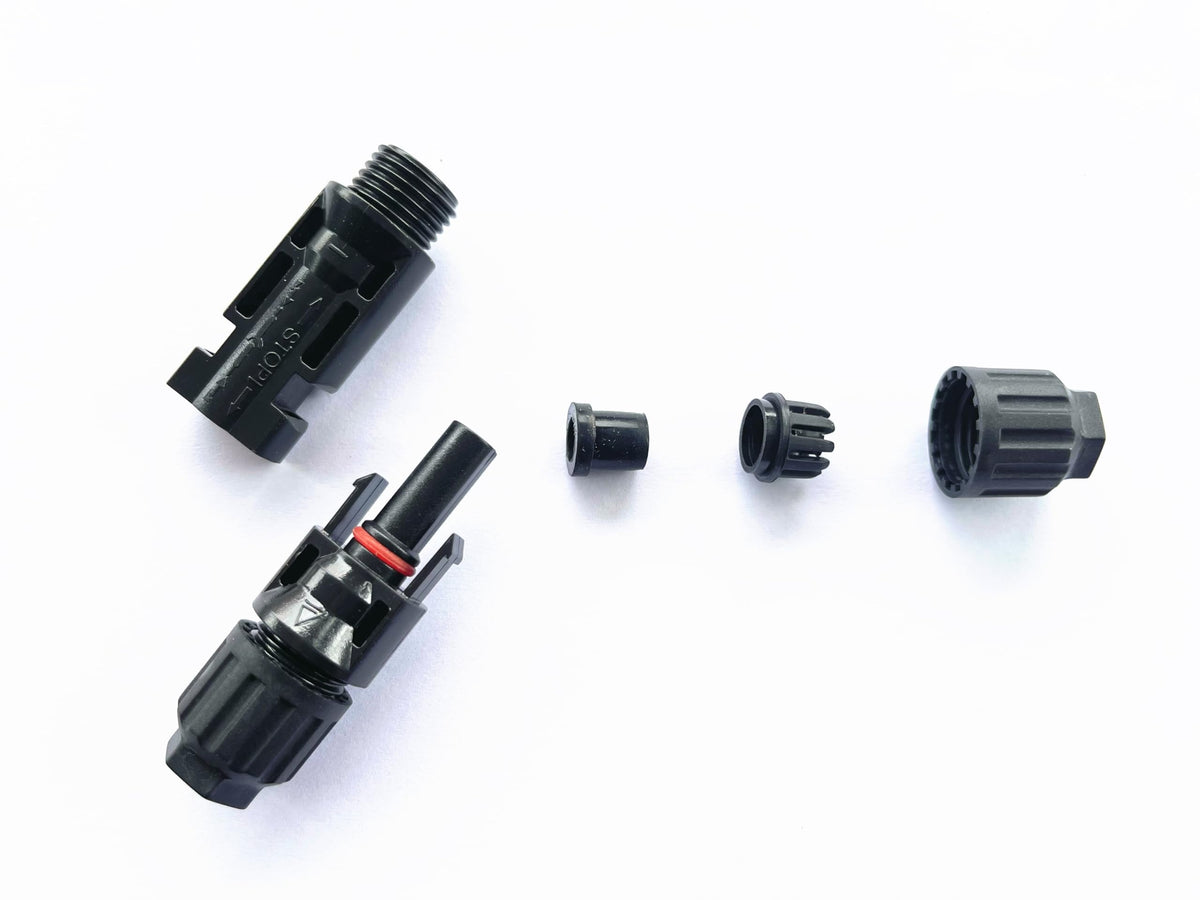

Premium materials and weather-ready design ensure the connectors stand up to real-world outdoor conditions. The housing is PPO with UV resistance, and the copper contact pins are tin-plated to reduce oxidation and maintain a reliable electrical path over time. A sealing ring adds a dust-repelling seal that works with IP67 waterproofing for rain, snow, and spray in remote installations.

Key specifications at a glance

• Rated voltage up to 1000V DC and current up to 30A, suitable for PV systems and panel arrays.
• Operational temperature range from -40°F to +221°F (-40°C to +105°C).
• UL94-V0 flammability rating for safer materials under heat exposure.

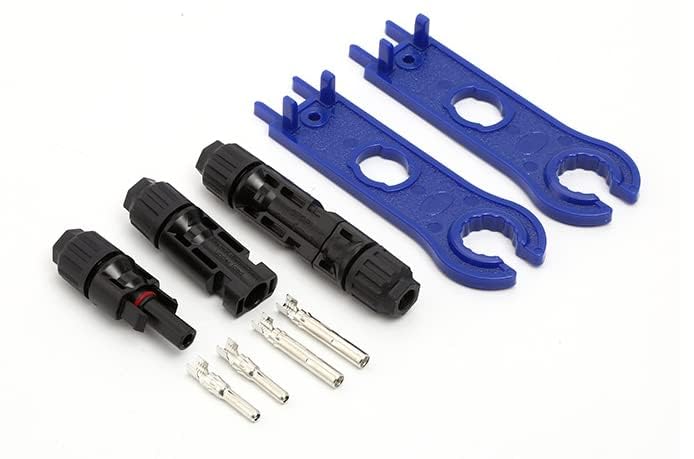

• Outer diameter compatibility: fits PV cables with insulation diameters from about 5mm to 7mm.
• IP67 level of waterproofing, plus dust resistance via the sealing ring.
• Insertion force ≤ 50N and withdrawal force ≥ 50N for a secure yet serviceable connection.
• Designed for parallel solar configurations, enabling flexible array wiring.

What makes them practical for field use

Outdoor installations require components that endure sun, wind, and moisture. Nixesky connectors are built to be resilient in the field: UV endurance keeps the plastic looking and performing over time, while the rugged pins provide a stable contact even after repeated mating cycles. The included spanners streamline tightening without rounding off edges, helping you work efficiently in tighter spaces.

When you’re wiring a roof installation, a shed array, or a portable off-grid setup, these connectors offer a straightforward, quick-connect solution. The high voltage and current ratings give you flexibility to scale, while the sealed design reduces the risk of moisture-related issues after a rain shower or heavy dew.

What’s included

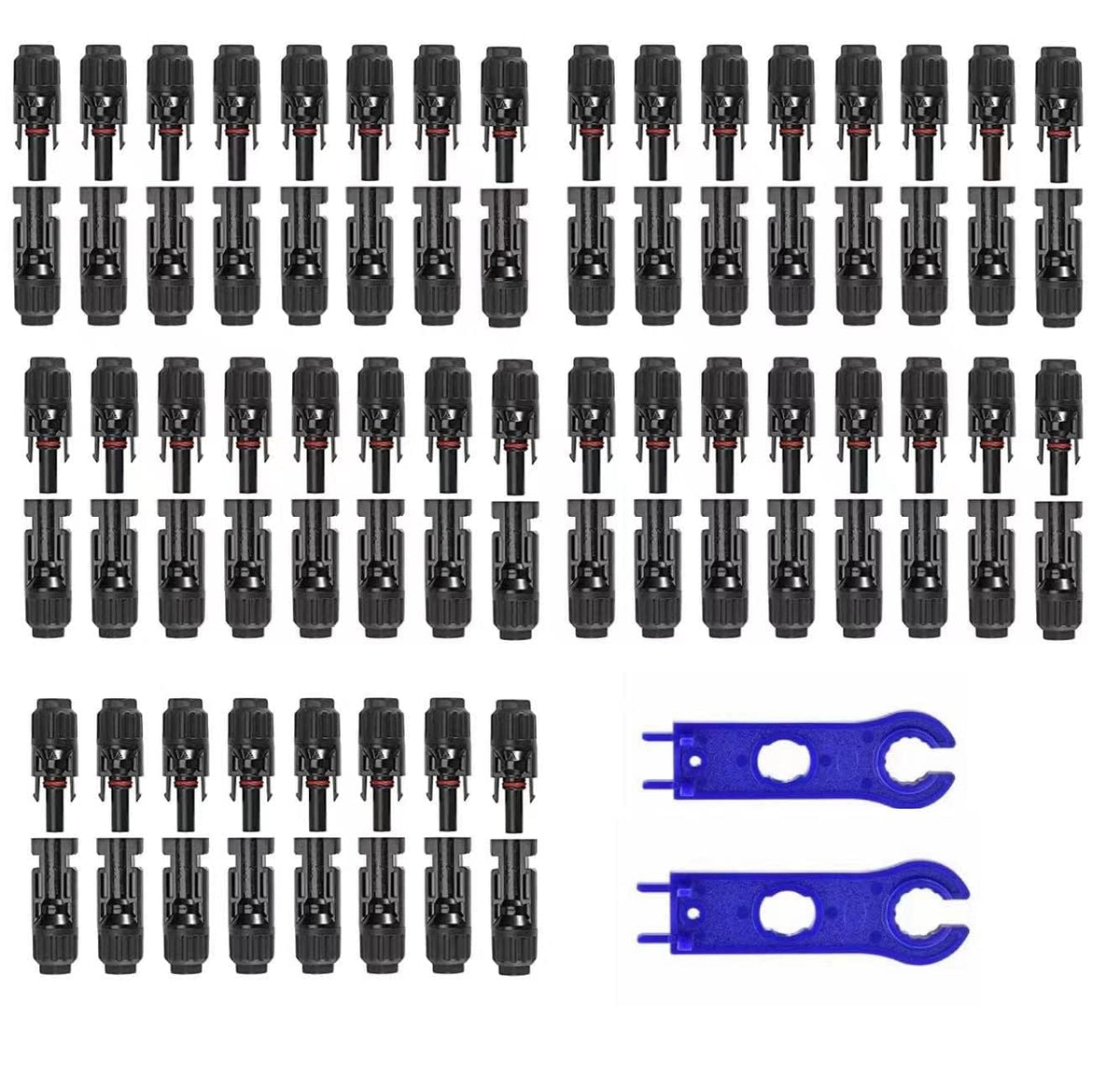

• 50 pairs of solar panel connectors (male and female)

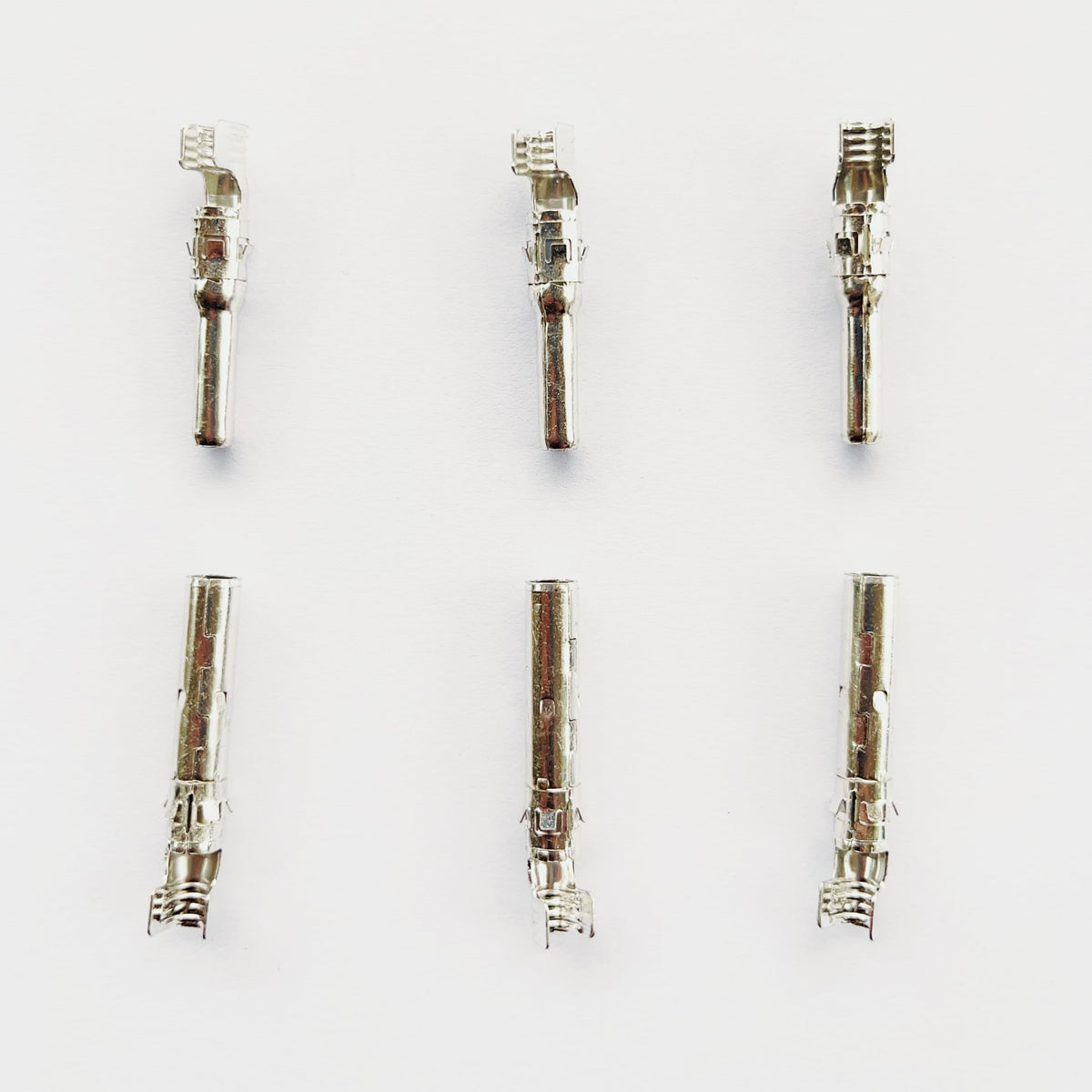

• 50 solar connector pins

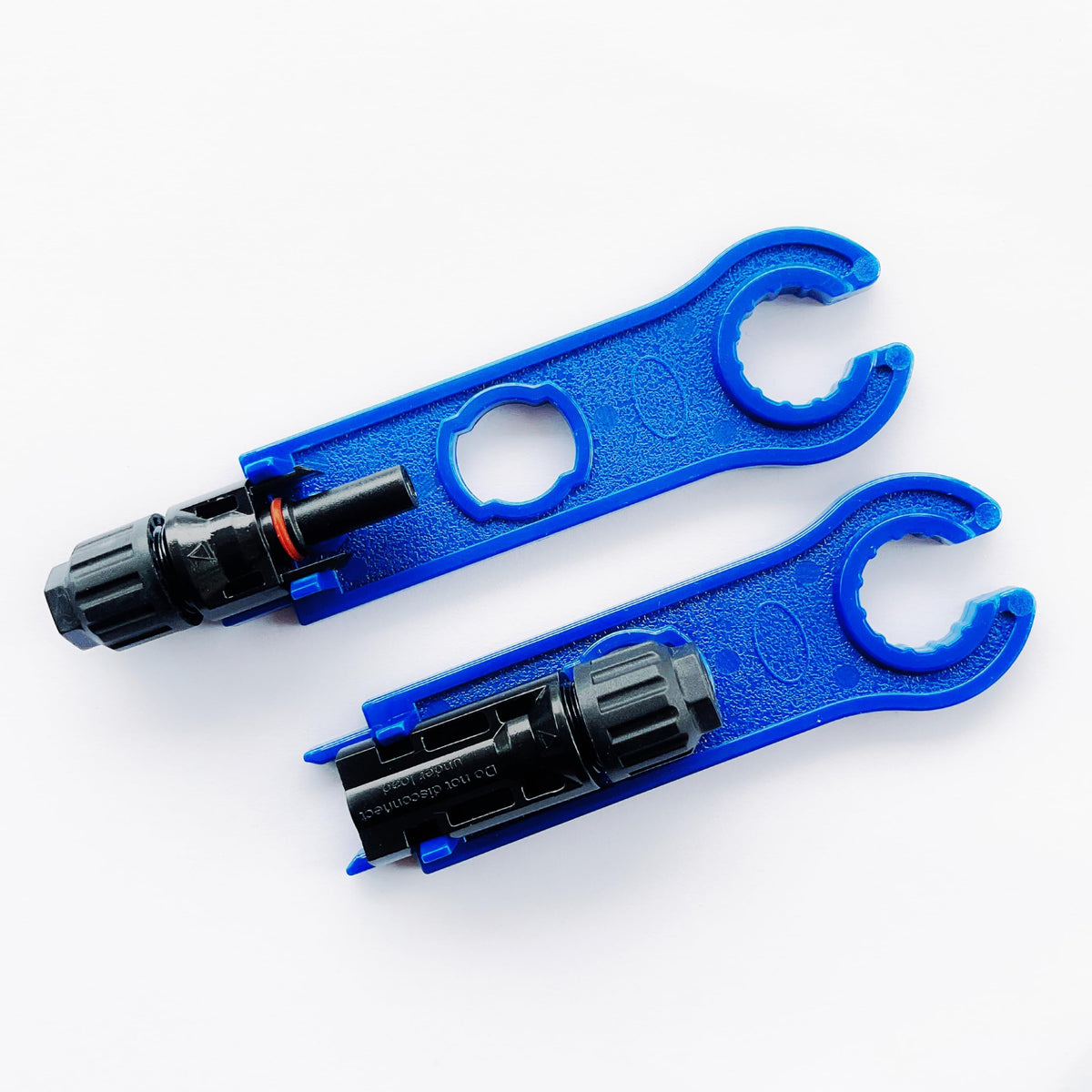

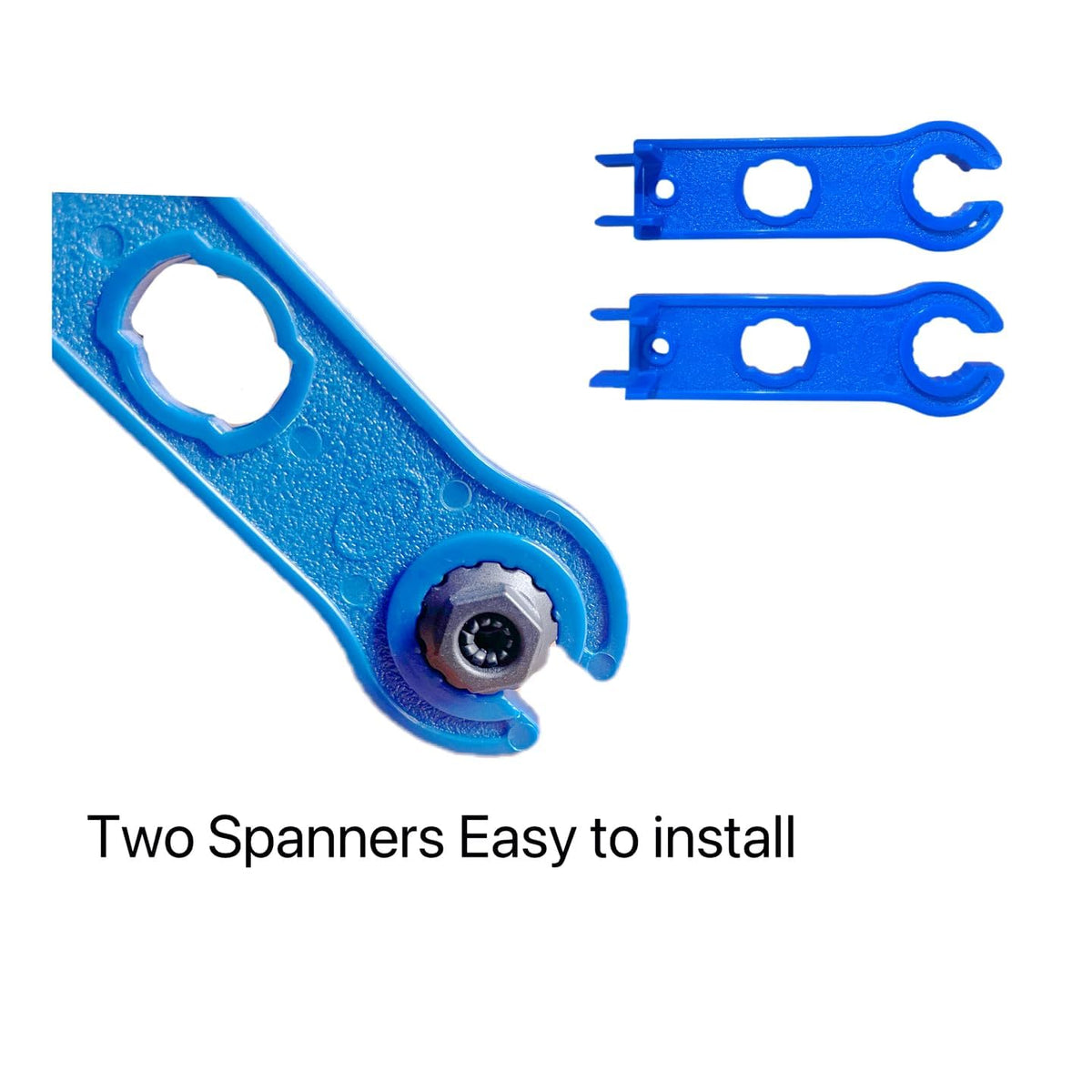

• 2 spanners for easy assembly and disassembly

Note: While these connectors provide robust protection, always follow local electrical codes and safety practices when assembling solar power systems.
