MOES Water Flow Meter – Brass Inlet/Outlet, Real-Time Flow, 99,999 L

MOES Water Flow Meter: Real-Time Insight for Outdoor Water Use

Designed for outdoor versatility, the MOES Water Flow Meter combines a rugged brass inlet and metal thread with a clear, high-definition LCD display. It’s built to help you monitor water usage across RV hookups, garden hoses, sprinklers, and nozzle sprayers without interrupting your routine. The IPX6 waterproof rating adds peace of mind when exposed to rain or spray, while the device remains easy to attach and detach from hose fittings thanks to the sturdy brass connections.

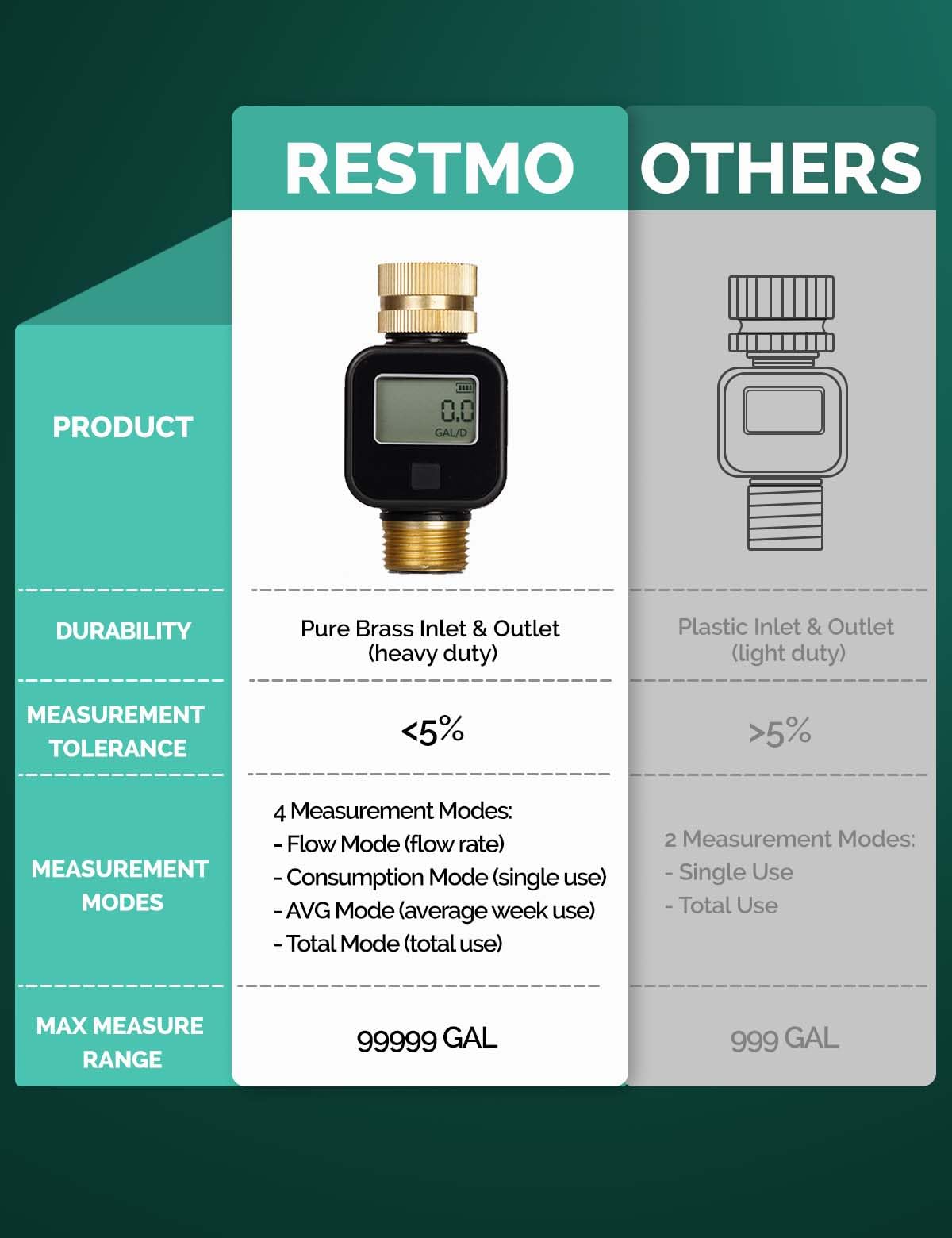

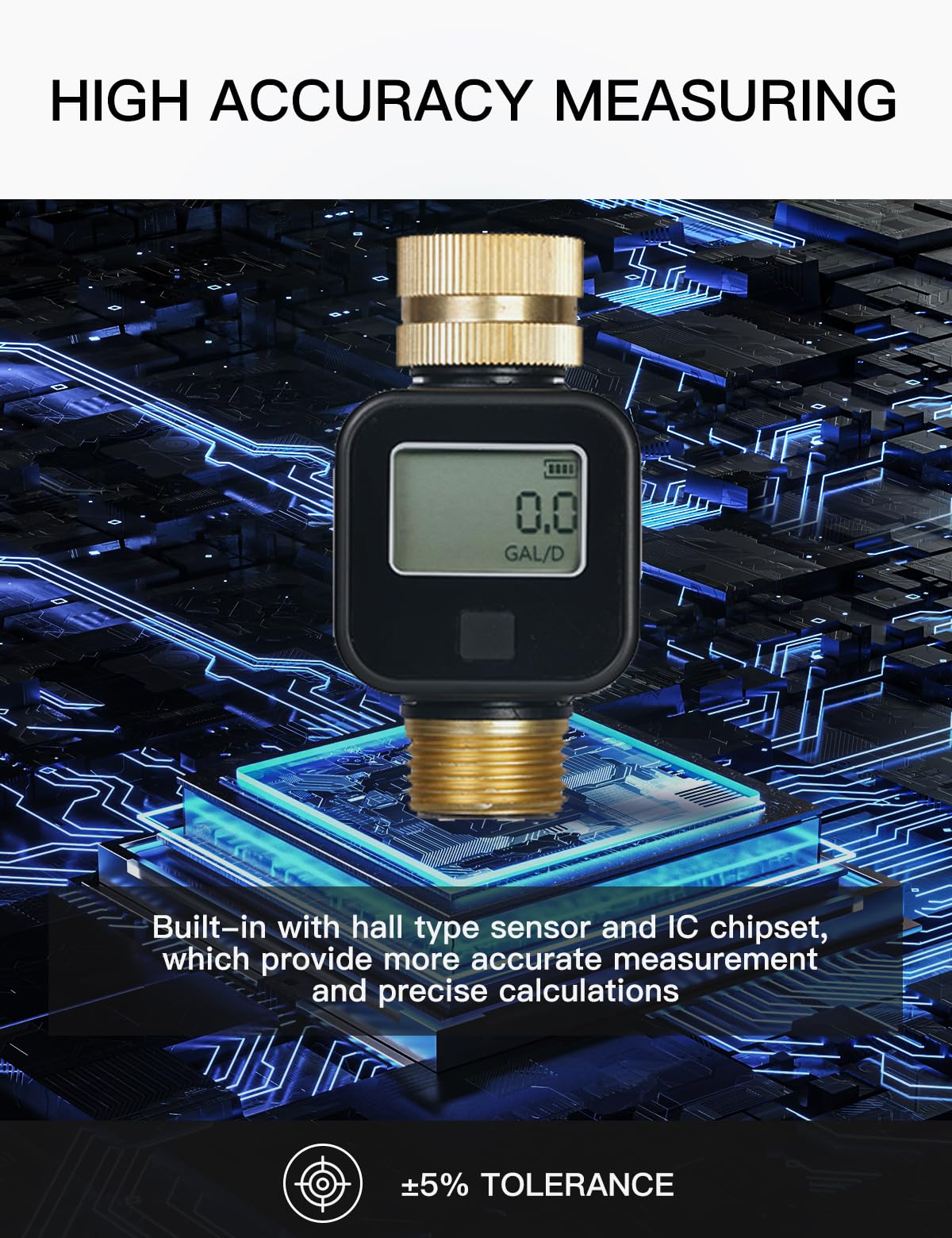

What makes this meter stand out is its combination of precision and practicality. A hall-type sensor paired with an IC chipset delivers precise calculations with a measurement tolerance around ±5%. Four measurement modes let you choose the data that matters most in a given moment, whether you need real-time flow, the last volume used, the average daily flow, or the total flow since installation. The unit can track up to 99,999 L or GAL, making it suitable for both small-scale watering tasks and higher-volume needs.

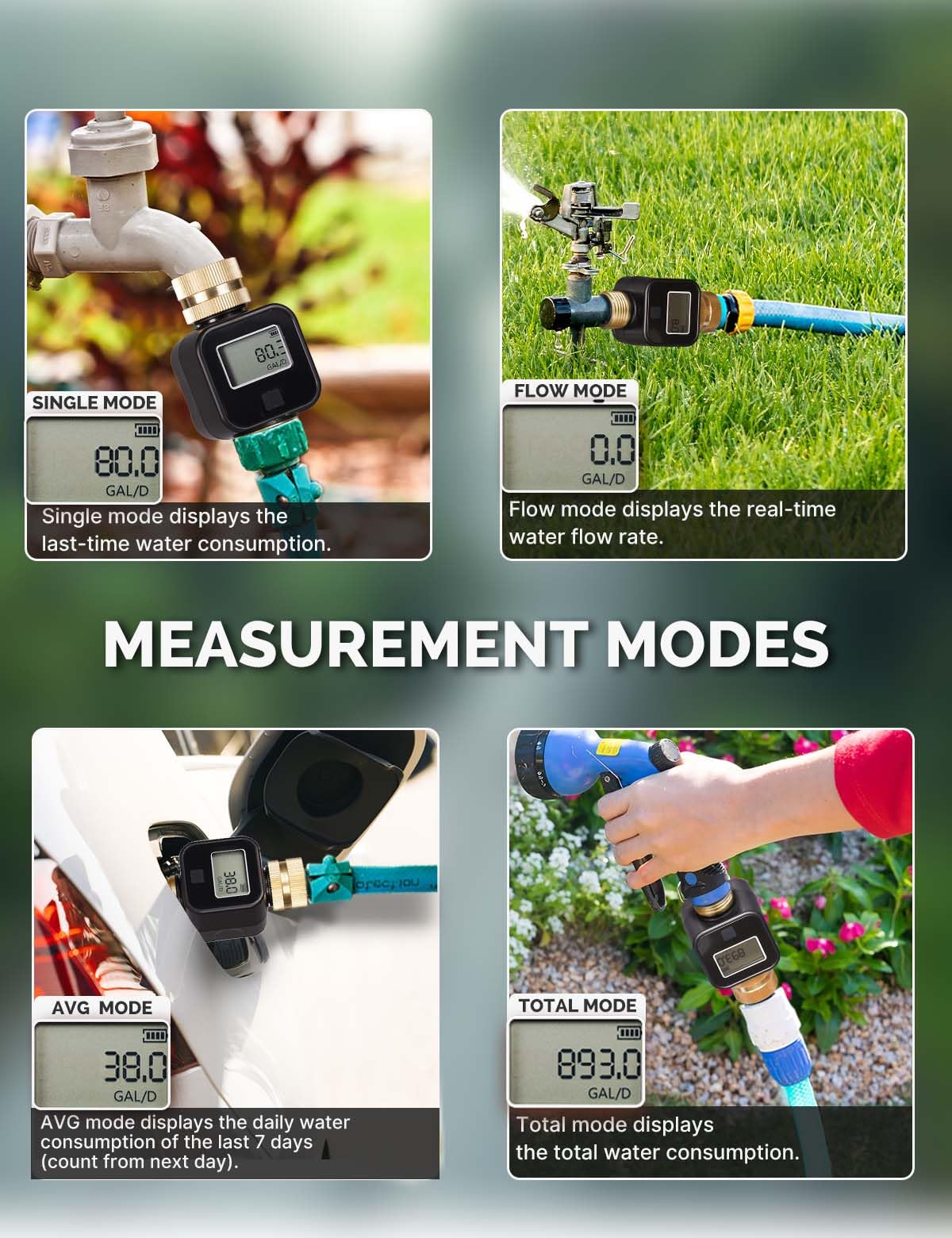

Four Measurement Modes for Flexible Tracking

• Real-time flow: watch current water speed as you water flowers, fill a tank, or run a sprinkler.
• Last-time volume: review the amount used in the most recent interval for quick checks after a watering session.
• Average daily flow: observe typical consumption across days to spot trends and adjust routines.
• Total flow: capture cumulative usage over time for budgeting and planning.

The meter’s performance supports a wide operating range: 1–45 L/min (12 GAL/min), working pressure from 0.5 to 10 bar, and a temperature tolerance from 3°C to 65°C (37.4°F to 149°F). With a max reading capacity of 99,999 L or GAL, you can monitor extended sessions without resetting prematurely. An auto orientation feature helps keep the display readable, and if you ever need to reverse the viewing orientation, a quick mode toggle and long press will adjust the screen direction.

Durable, Easy to Use, and Widely Compatible

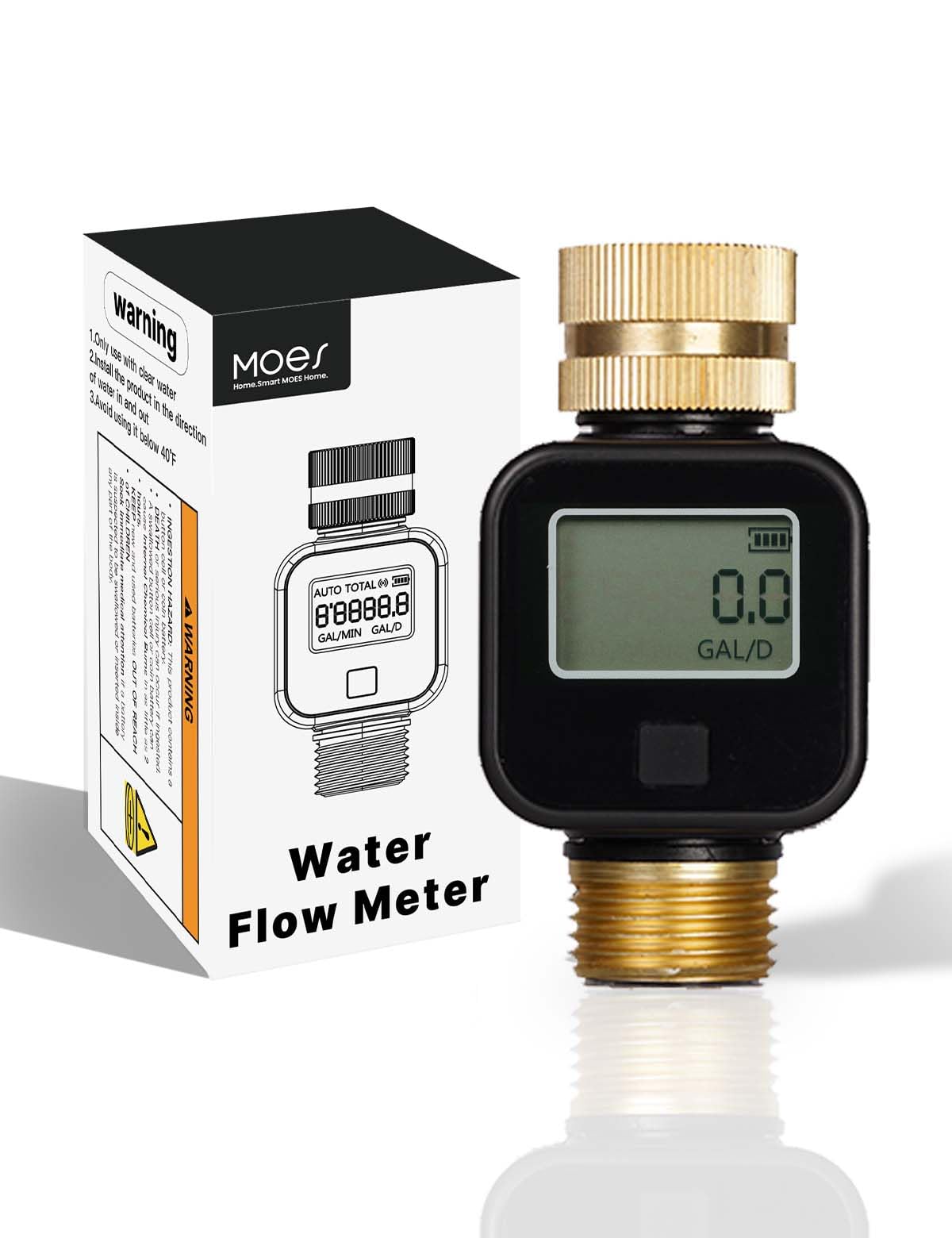

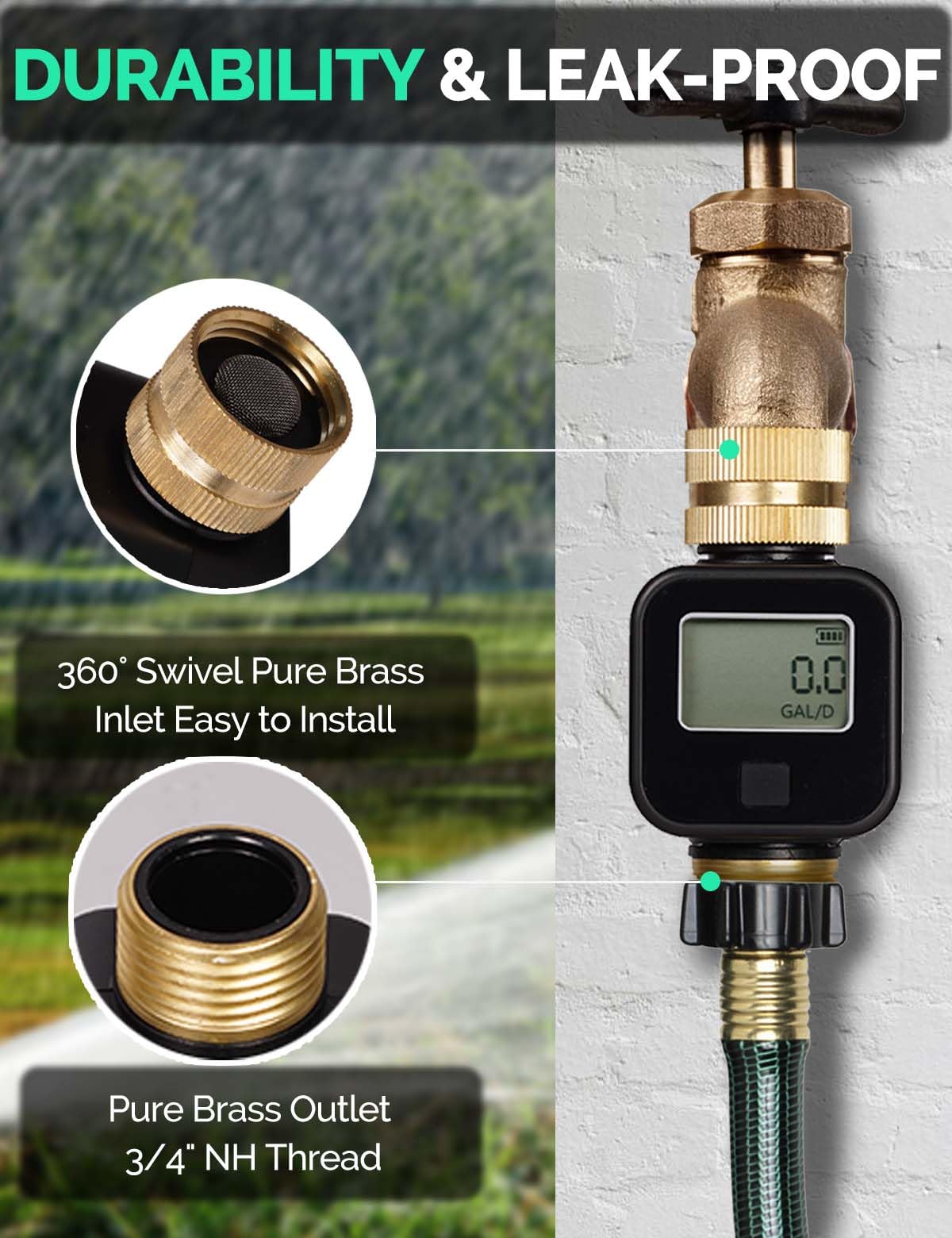

• Durable construction: pure brass inlet and outlet with strong metal threading reduce wear from frequent hose connections.

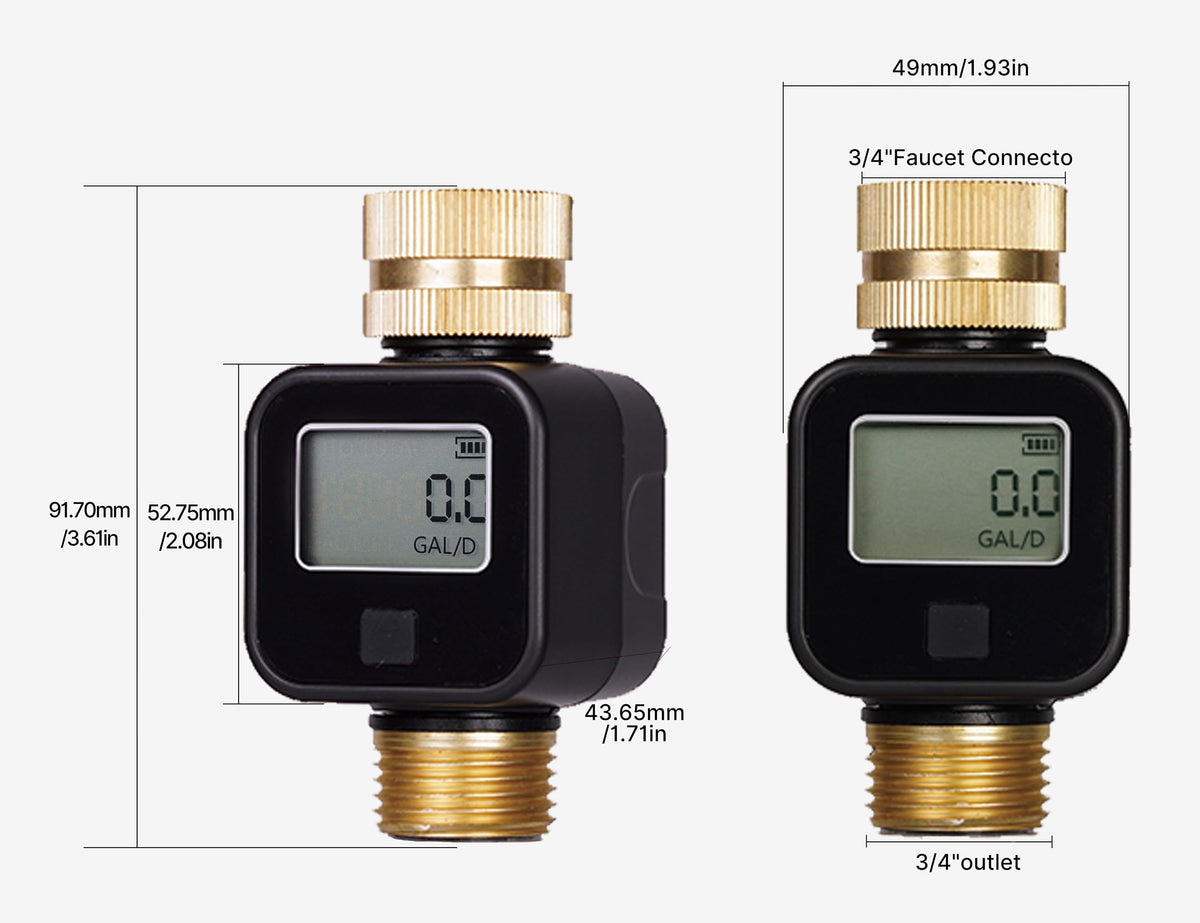

• Easy installation: designed for standard 3/4 inch faucet hoses, enabling quick setup in outdoor spaces.
• Clear readings: a high-definition LCD screen makes numbers legible in bright sun or shaded areas.

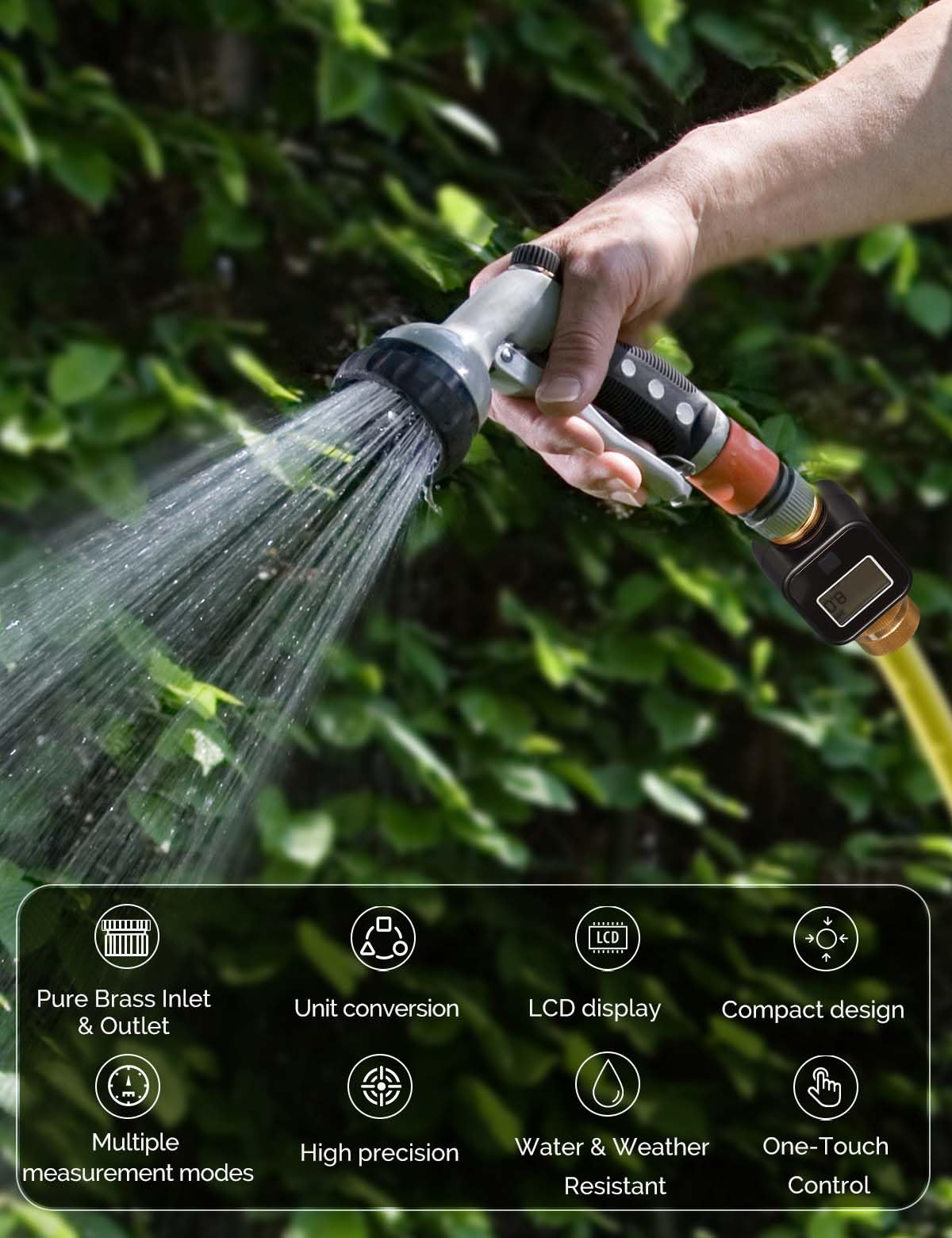

• Practical for a range of tasks: from RV water filling to lawn care, irrigation, and nozzle spraying.

Real-Life Uses and Benefits

• Track water used when refilling RVs or external tanks to avoid overflows and plan trips.
• Monitor garden irrigation to prevent over-watering and optimize coverage with precise flow data.
• Assess sprinkler performance and adjust schedules based on actual consumption.
• Document total consumption over weeks or months for budgeting water costs.

Specification Snapshot

• Waterproof: IPX6
• Flow rate: 1–45 L/min (12 GAL/min)
• Max consumption: 99,999 L / 99,999 GAL
• Working pressure: 0.5–10 bar
• Temperature range: 3°C–65°C (37.4°F–149°F)
• Connection: 3/4 inch standard faucet hose

Whether you are managing a watering routine or auditing water use during outdoor activities, the MOES Water Flow Meter provides accessible numbers you can trust without promising outcomes. Use the data as a guide to optimize your water usage while staying flexible and in control.
