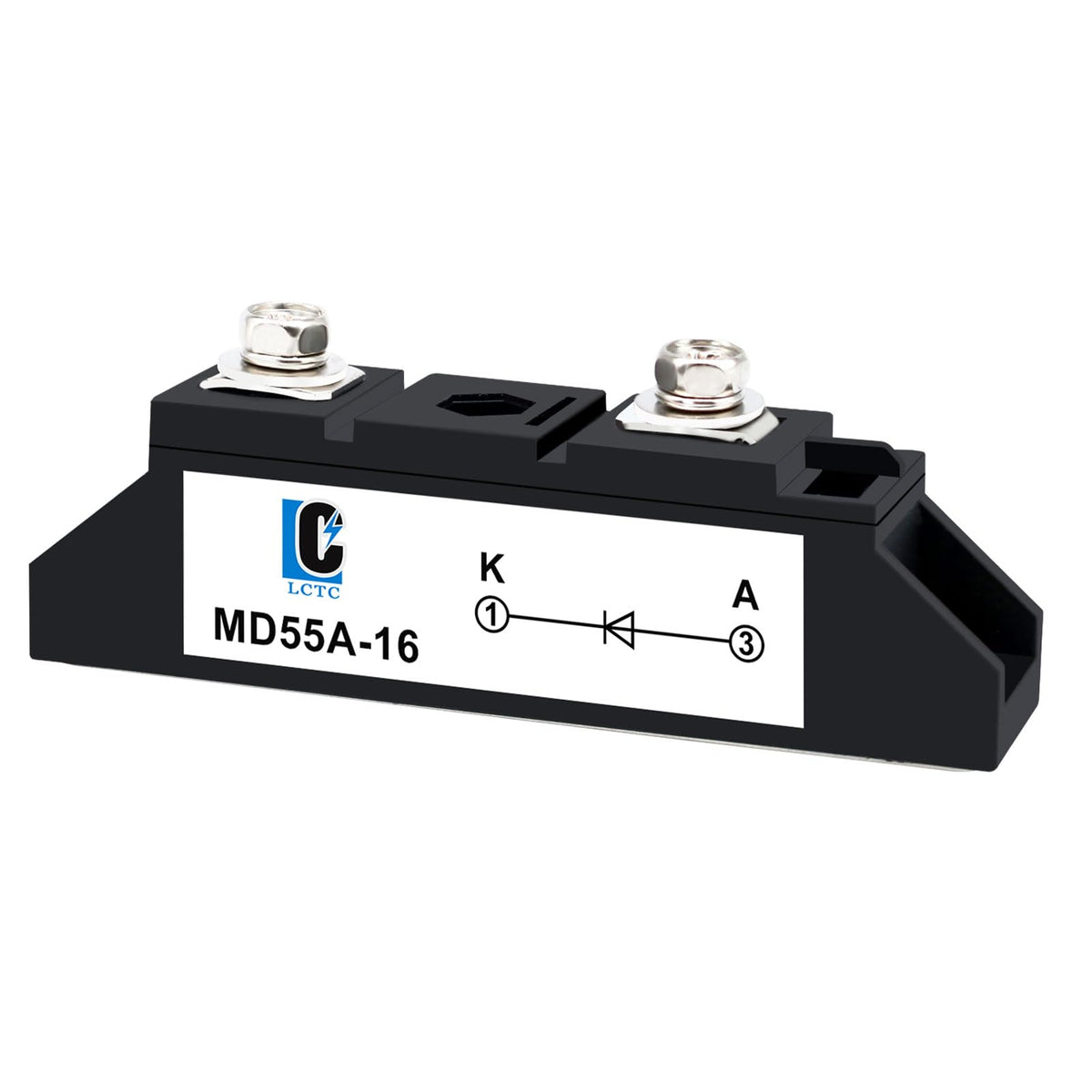

LCLCTC MD55A-16 anti-reverse diode body shows robust housing for backfeed protection.

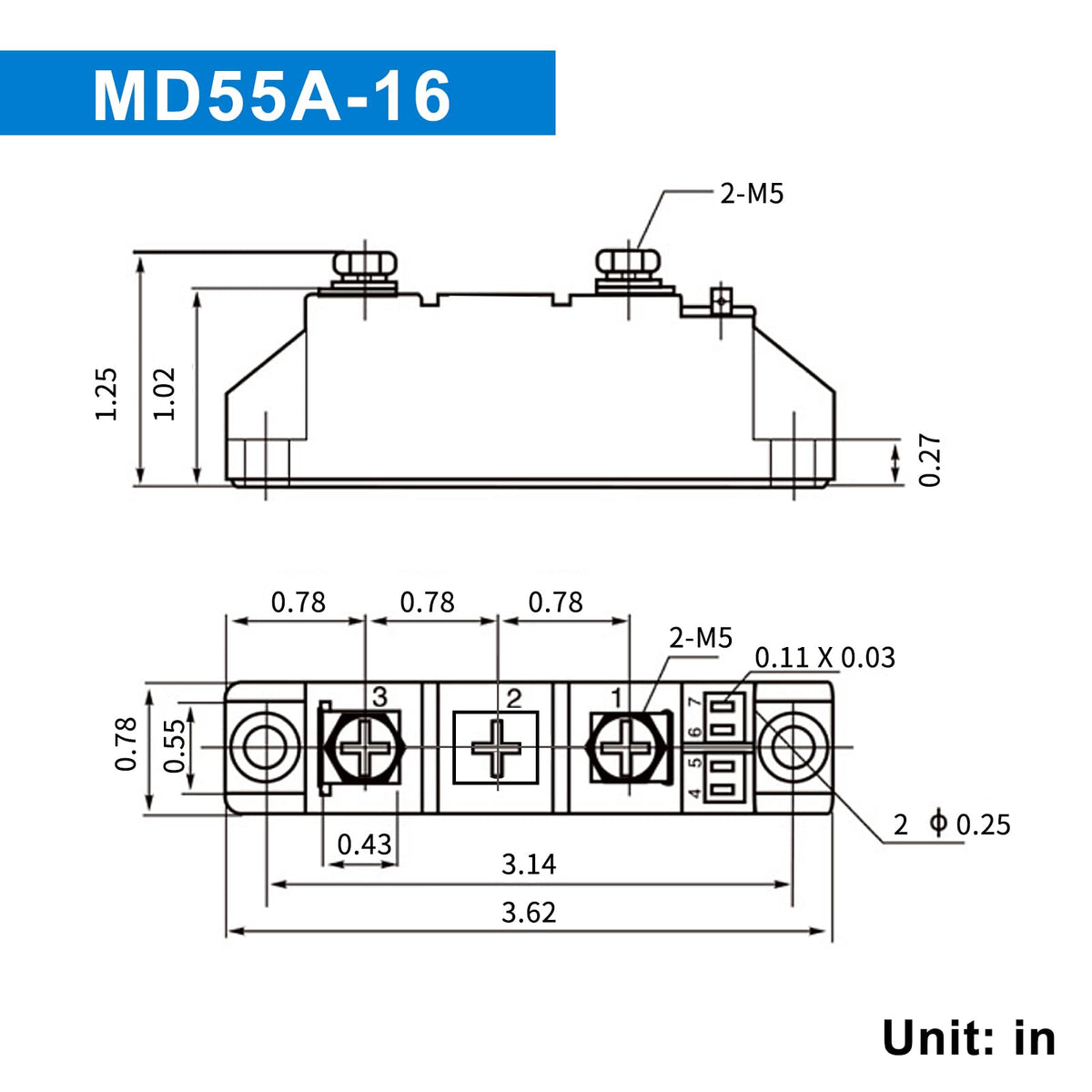

LCLCTC MD55A-16 anti-reverse diode top view emphasizes solid construction for PV use.
LCLCTC MD55A-16 heatsink-ready diode demonstrates efficient cooling for high current.

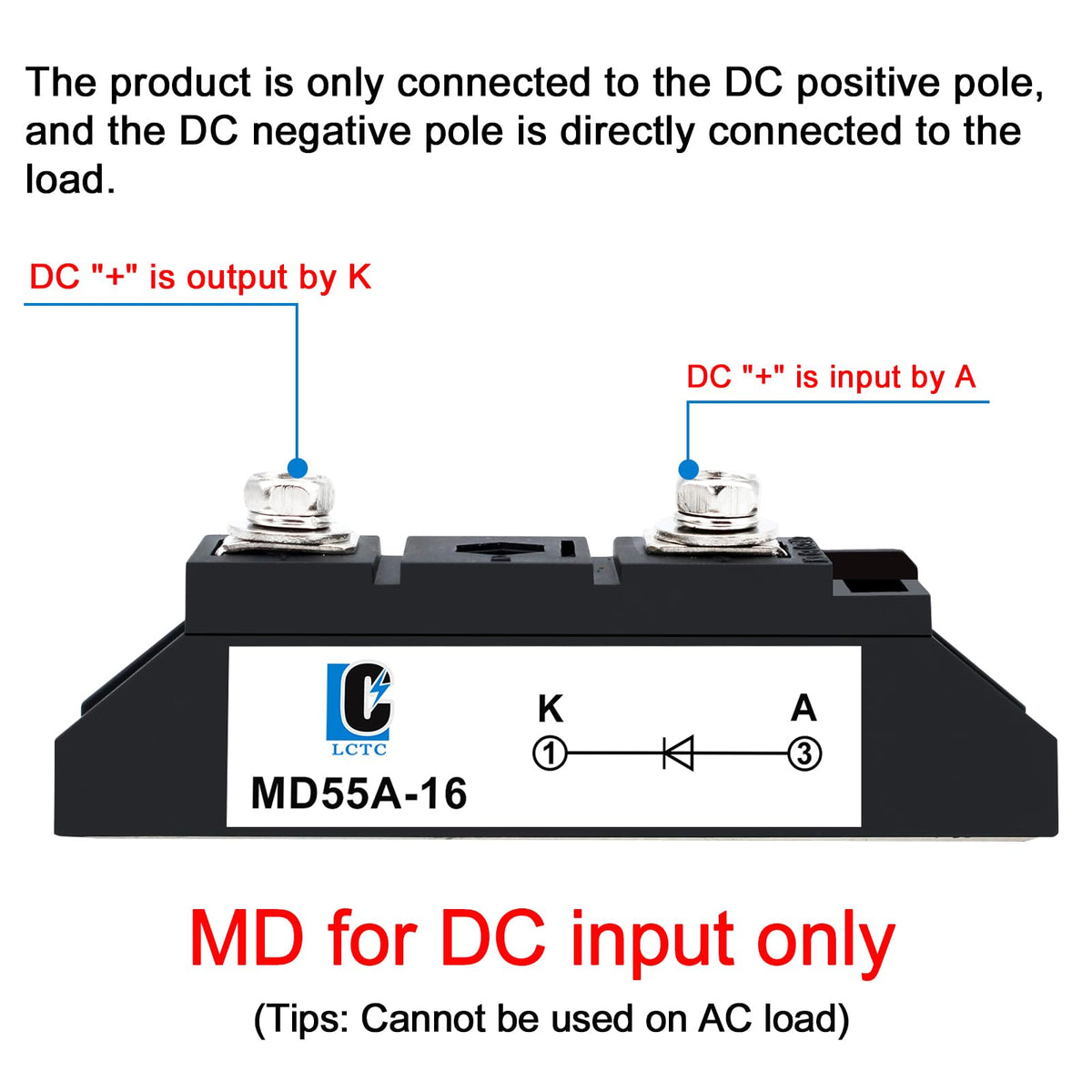

LCLCTC MD55A-16 rectifier-bridge setup illustrates four-diode configuration for AC-DC conversion.

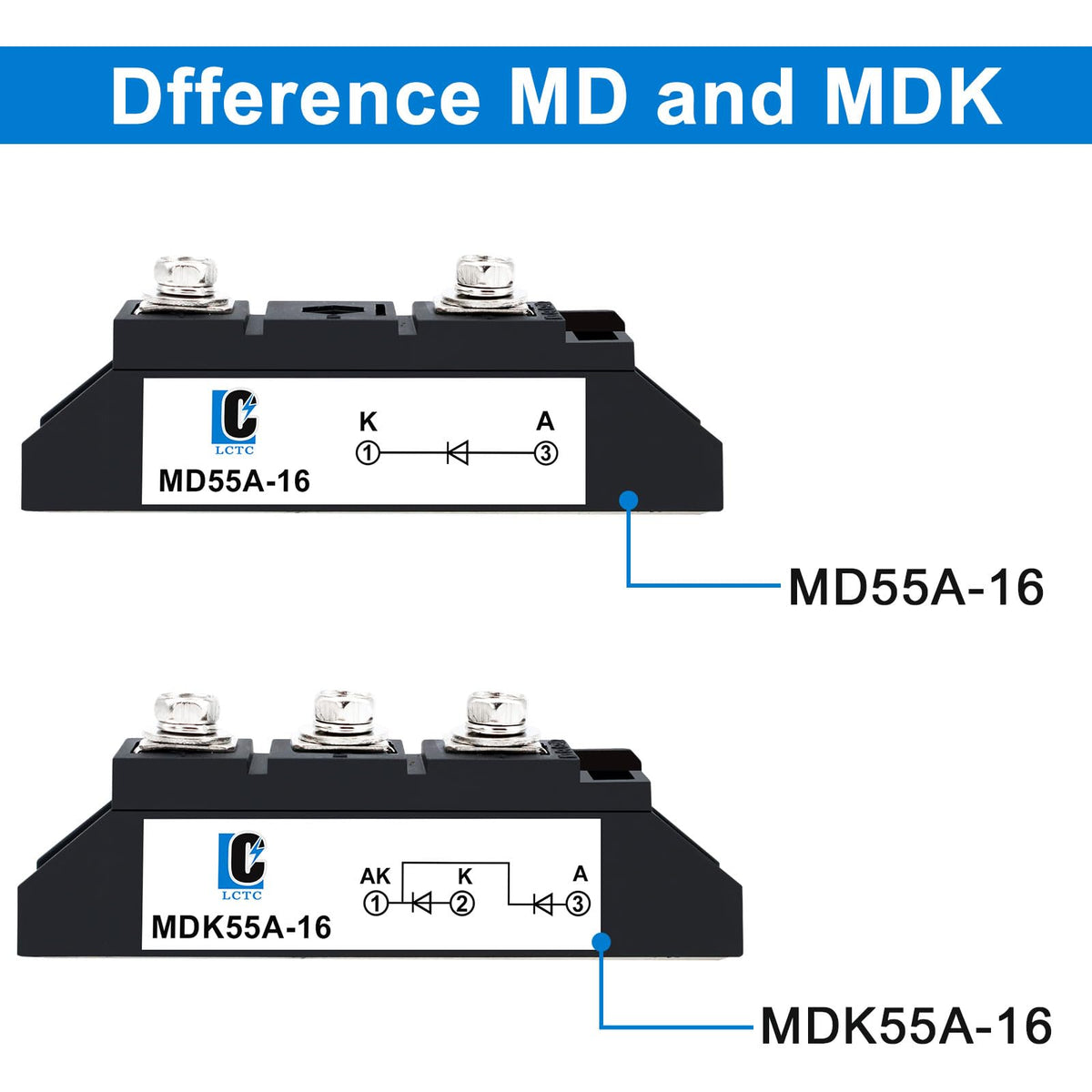

LCLCTC MD55A-16 solar-diode in PV system highlights backfeed prevention in solar energy setups.

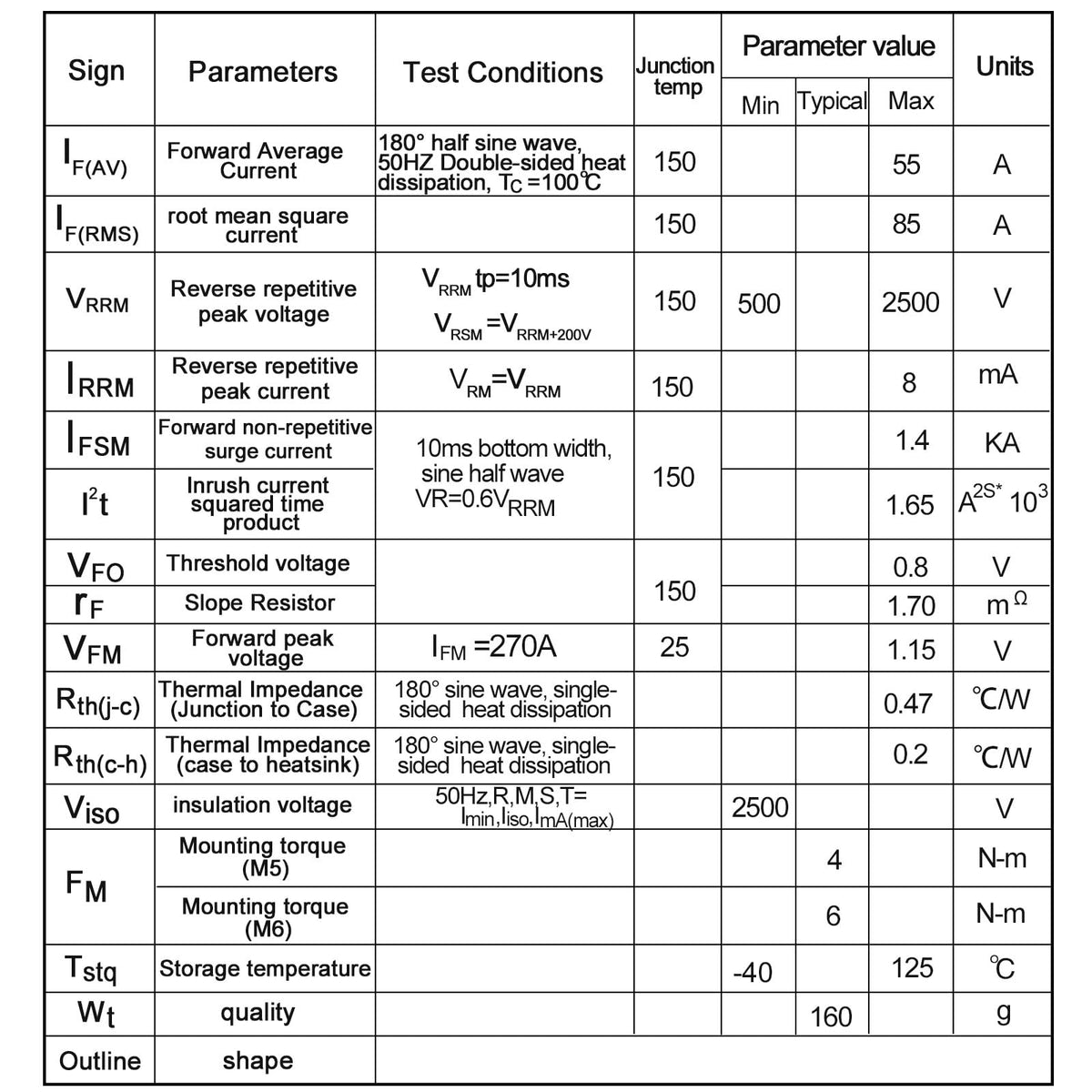

LCLCTC MD55A-16 end-cap markings help correct orientation during installation.

LCLCTC

LCLCTC MD55A-16 50A Anti-Reverse Diode for PV, Battery & Vehicle Systems — 3-1000VDC, AC up to 400 VAC

High-performance patio lawn and garden made for confident daily results

$24.77

3 shoppers currently have this item in cart.

Low stock: only 5 left in inventory. Add to cart before it's gone.

Shop Pay installment options may appear at checkout where eligible.

Free shipping Secure checkout 100% refund eligible
Bundle & save Buy 2 and save checkout time

Premium patio lawn and garden quality selected for United States (USA) customers.

Routine pack Build your routine pack (3)

Fast dispatch with always-free shipping and secure checkout on every order.

Free shipping

i

Free shipping on every order. Fast dispatch, tracked delivery, and secure checkout included.

Easy returns

i

Simple return flow and responsive support for eligible items.

Peak-demand shipping delays

i

During high demand, deliveries may experience short carrier delays. Tracking updates remain active for every order.

24/7 customer support

Questions before checkout? Our team is available and ready to help.

Return & RefundEasy returns and policy details Shipping PolicyDelivery process and tracking info
Share

Why customers choose Cera Garden

Overview

The LCLCTC MD55A-16 anti-reverse diode is designed to prevent backfeed in power paths while handling substantial current. Its sturdy construction and wide voltage range make it well-suited for energy-related applications, including photovoltaic setups, battery systems, and vehicle electronics. This part reads as a dependable, high-current protection option for real-world power routing.

Key specifications

  • Model: MD55A-16 anti-reverse diode
  • Current rating: 50A continuous (high-current diode)
  • Peak voltage: 1600V
  • Voltage range: AC up to 400VAC; DC 3–1000VDC
  • Usage note: four diodes can form a rectifier bridge for higher-current needs
  • Heat management: a suitable heatsink is recommended to maintain reliability

Because solar energy and photovoltaic power generation are common use cases for this component, it is often paired with solar cells and panels. Some users refer to it informally as a solar diode due to its role in directing electrical flow within PV systems. When needed, four diodes can be combined to create a robust rectifier bridge for additional current handling.

Practical uses

  • Solar energy systems for backfeed protection and safe energy routing
  • Battery charging paths in 12V, 24V, and 48V configurations and beyond
  • Vehicle, trailer, and caravan electrical networks requiring reliable current control
  • High-current DC circuits where preventing reverse flow is beneficial

Tips for installation and longevity

  • Install with an appropriate heatsink to manage heat during operation
  • Verify orientation using end-cap markings to ensure correct current direction
  • Consider a four-diode bridge if your design calls for elevated current handling

Note: If you anticipate higher-than-specified current requirements, contact us to discuss suitable options or configurations.

FAQ

Q: What scenarios is the MD55A-16 anti-reverse diode suited for?

A: Ideal for solar, battery, trailer, and vehicle power paths where backfeed prevention and high-current handling matter.

Q: What installation considerations should I follow?

A: Use a suitable heatsink, observe end-cap markings, and consider a four-diode bridge for higher current.
