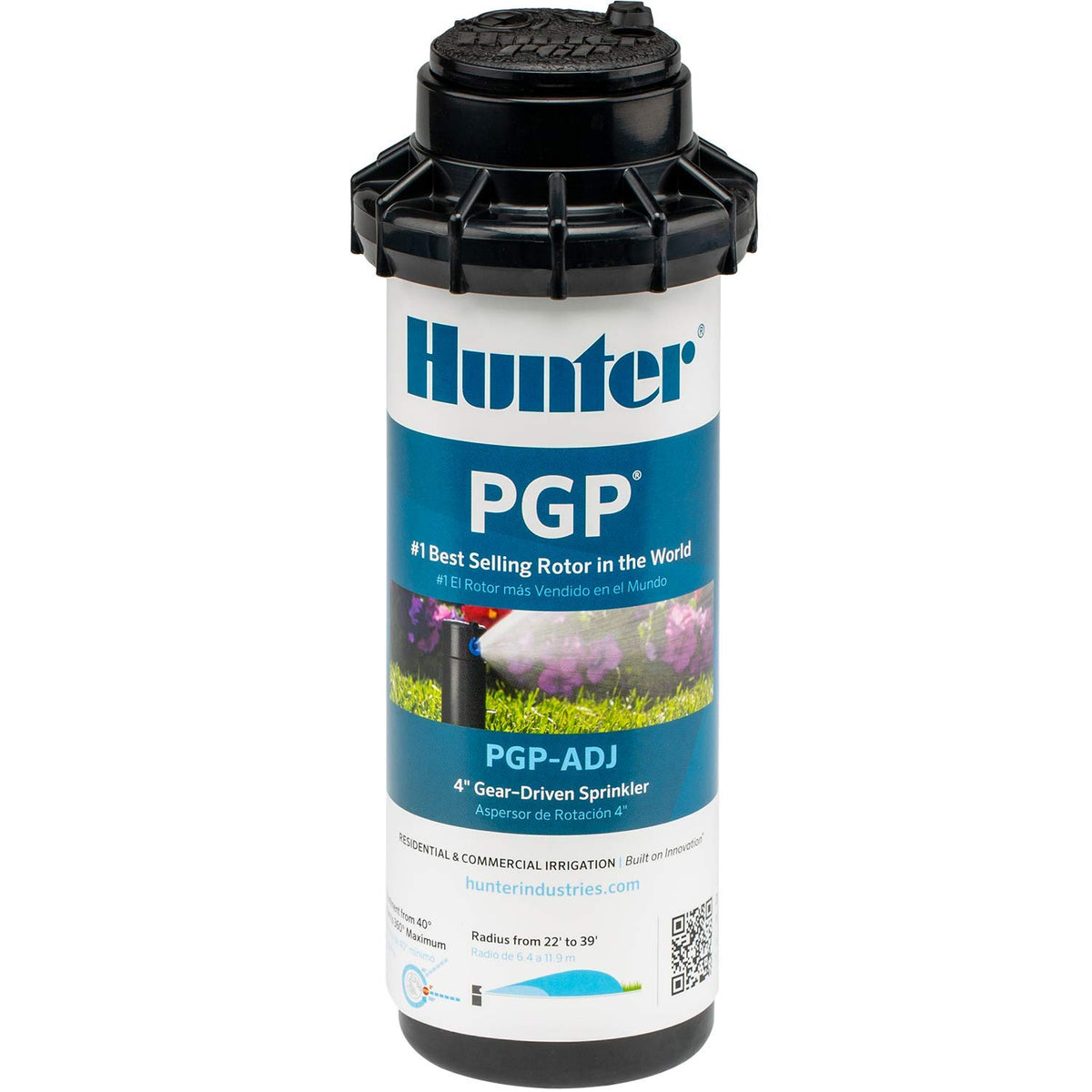

Hunter PGP-ADJ 3/4-Inch Rotor Sprinkler Head — Adjustable Arc 40°–360°, 4-Inch Pop-Up, 22–52 ft Spray

Overview

The Hunter PGP-ADJ rotor sprinkler head is a trusted gear-driven solution designed for precise, long-lasting irrigation. Built to withstand outdoor conditions, it delivers dependable performance across lawn and landscape zones with smooth, quiet rotation. The 4-inch pop-up height helps keep spray distribution consistent above turf, while the ¾-inch NPT inlet ensures compatibility with common systems.

What sets the PGP-ADJ apart is its flexibility. It combines a wide adjustable arc with a substantial spray radius, making it suitable for both full-circle and part-circle applications. A preinstalled nozzle sets the stage for efficient watering, and the overall design emphasizes reliability in residential and commercial settings alike.

Adjustable Arc and Coverage

• Arc range from 40° to 360° lets you tailor zones for odd-shaped beds or expansive lawns.
• Spray distance spans approximately 22 to 52 feet, enabling fewer heads per zone without sacrificing coverage.

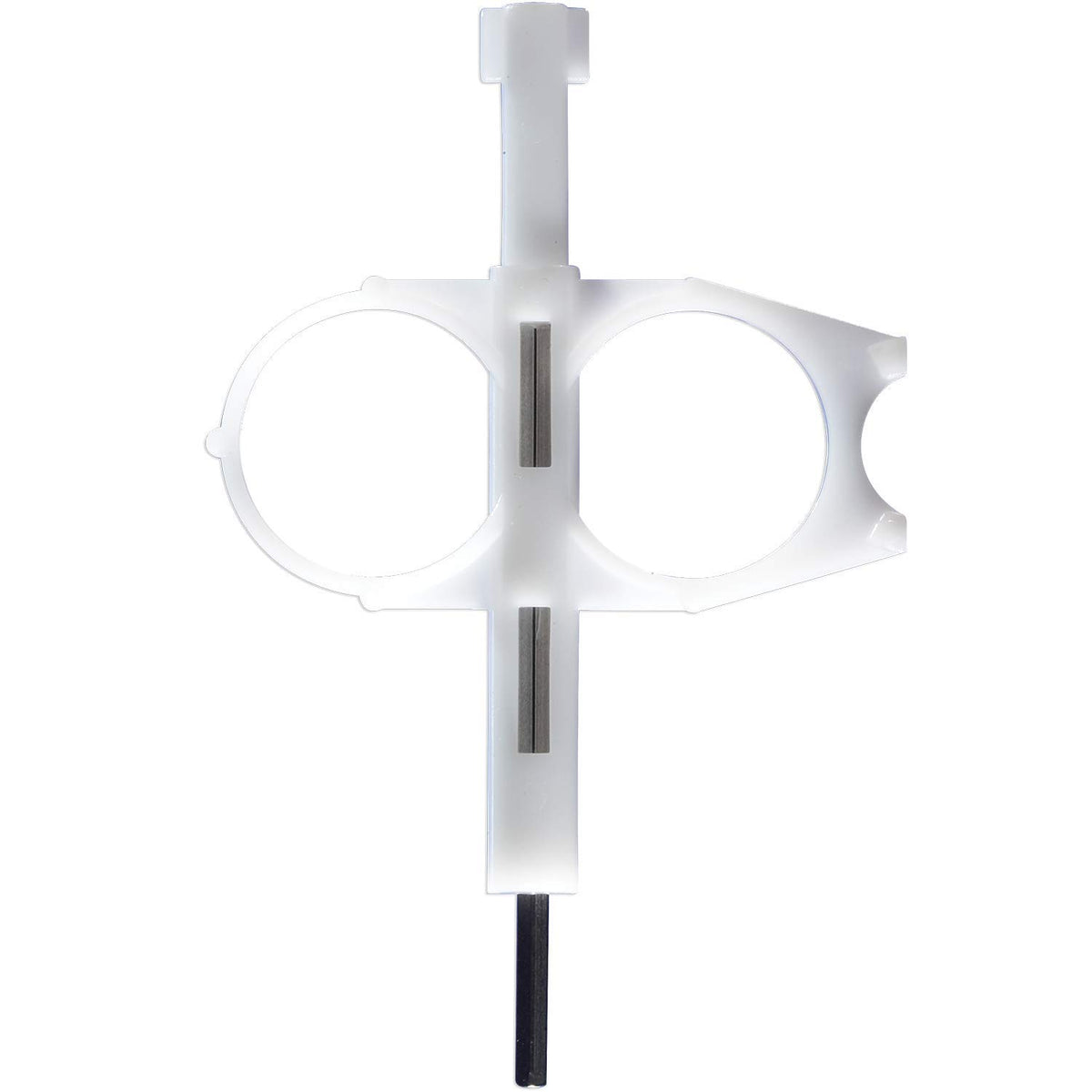

• Optional nozzles (sold separately) offer further customization to match site conditions.

With a flow range of 0.5 to 14.1 GPM and a precipitation rate around 0.4 inches per hour, the PGP-ADJ supports diverse system designs while maintaining efficiency. The standard nozzle trajectory is 25°, and a low-angle 13° option provides wind resistance and suitability for slopes.

Reliability and Quiet Operation

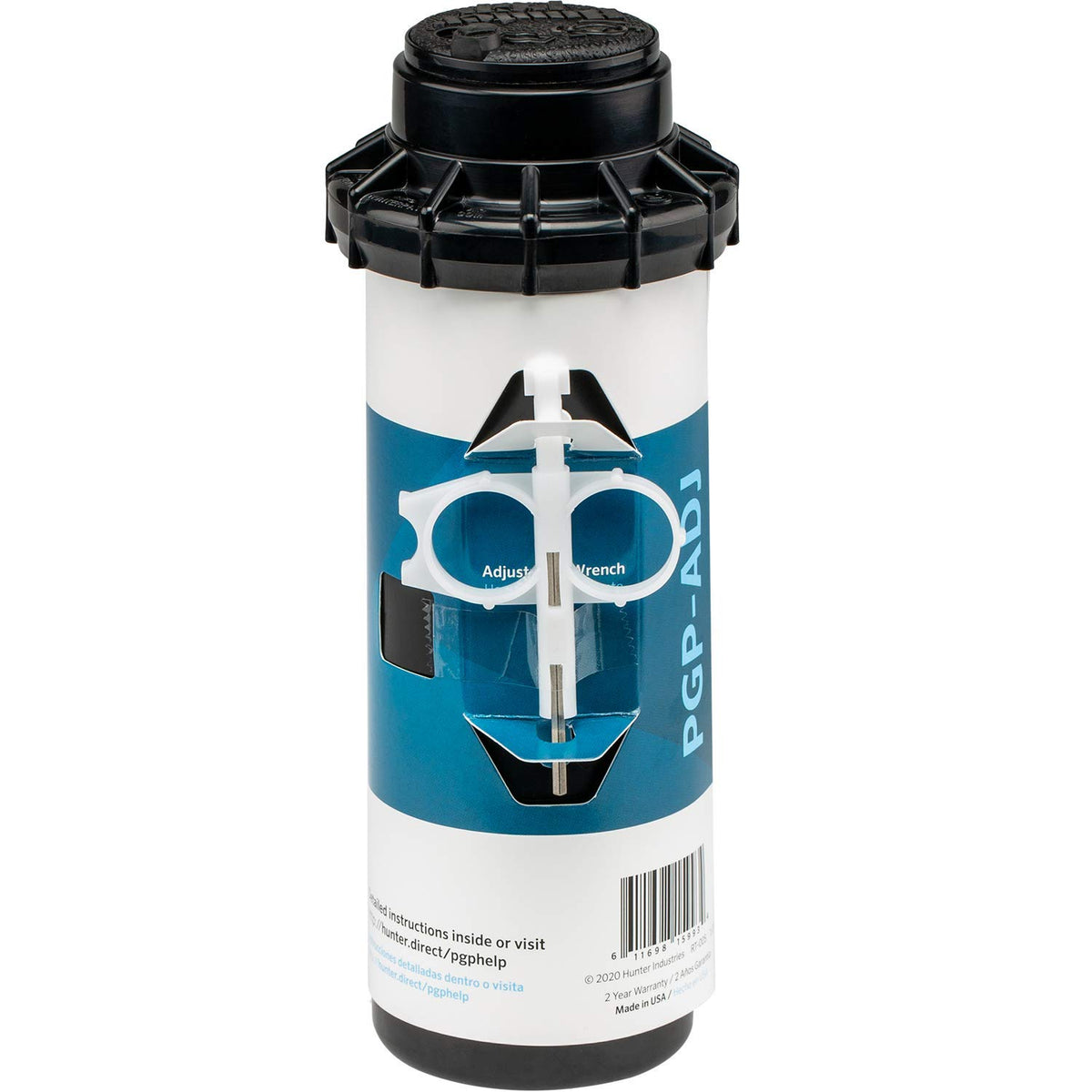

• Water-lubricated gear drive delivers smooth, quiet rotation and helps resist clogging over time.
• Operating pressure ranges from 20 to 100 PSI, with a recommended 25 to 70 PSI for optimal performance in most systems.

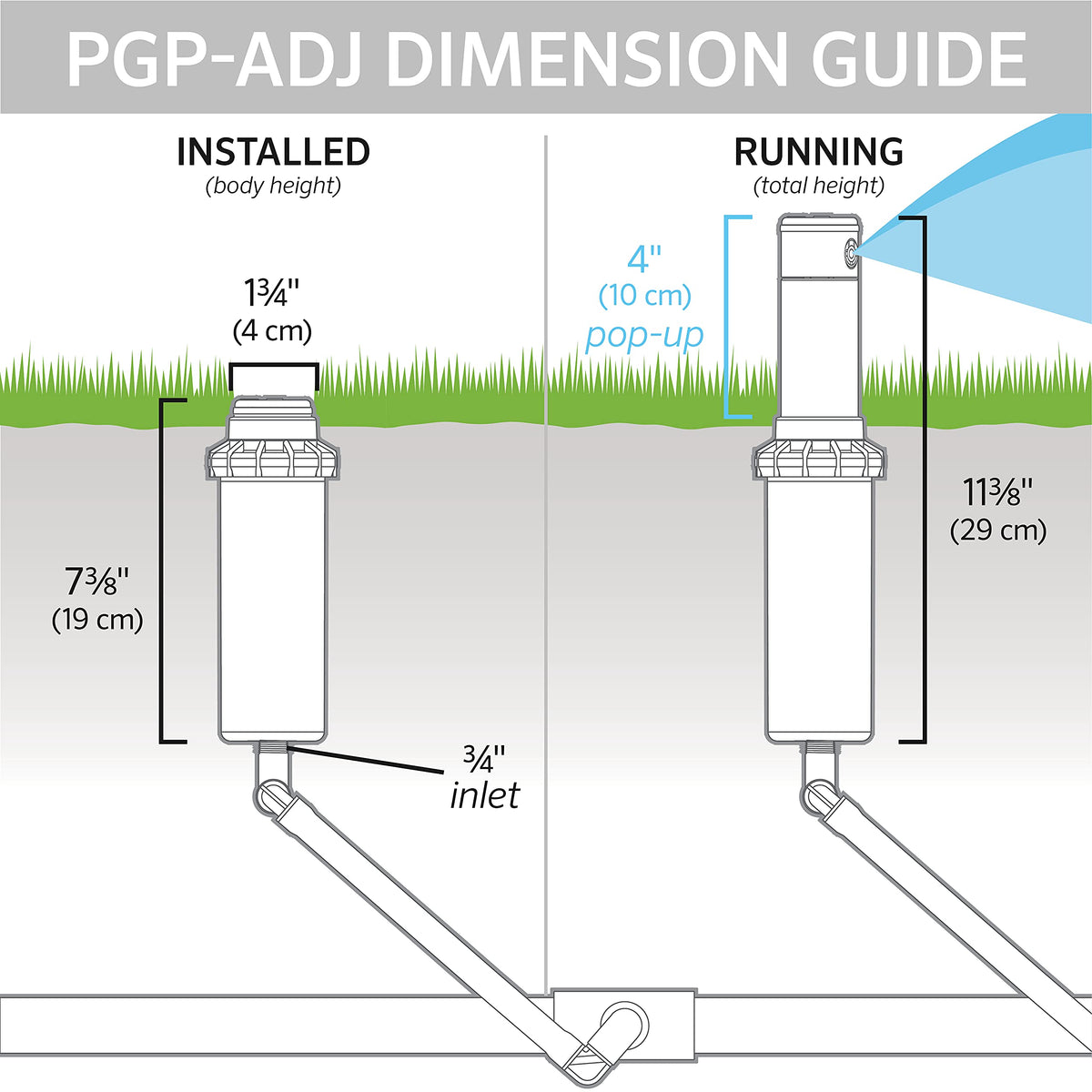

• Retracted body height of 7¾ inches and an exposed diameter of about 1¾ inches contribute to a compact profile that fits in tight spaces.

Installation and Compatibility

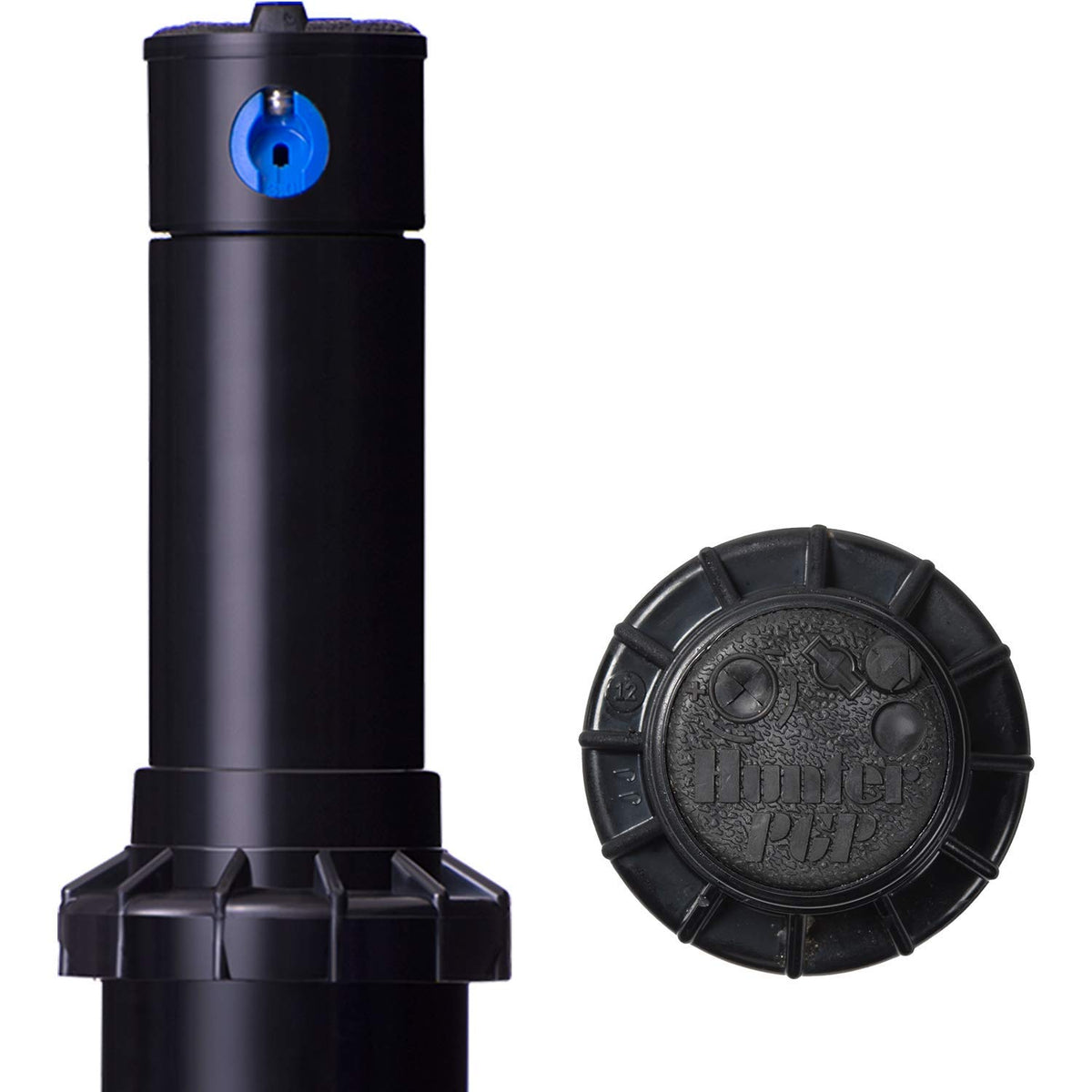

The standard ¾-inch female NPT inlet and a 4-inch pop-up height make this head easy to integrate into existing irrigation setups. Whether replacing an aging head or building a new system, the PGP-ADJ is designed to deliver consistent distribution with minimal effort.

Real-world use cases include large, open lawns where spacing can be optimized by maximizing coverage per head, and landscapes with uneven terrain where adjustable arcs help avoid overwatering sidewalks, driveways, or planting beds. The combination of a robust gear drive, adjustable arc, and a versatile nozzle setup offers flexibility without compromising reliability.

What you may notice when you install

• Quiet operation and stable rotation under typical residential and commercial pressures.
• Clear spray distribution that avoids over-saturation in sensitive areas.
• Easy replacement in existing systems thanks to the standard inlet and pop-up height.
