Hipa 951-05221 Carburetor Kit for 21-Inch 5.0 HP Powermate Tillers | All-In-One Replacement

Overview

Discover the Hipa 951-05221 carburetor kit, designed as a comprehensive replacement for select 21-inch tillers and yard machines. This all-in-one package combines essential components to help your outdoor power equipment run smoothly, eliminating the guesswork of sourcing parts separately.

Compatibility and versatility

This kit is built to cover multiple carburetor configurations commonly used in home and hobby farming tools. It is designed to replace 951-05221 carburetor variants and is also compatible with various 651-05221 configurations, along with 140cc Yard Machines, MTD, Troy-Bilt, Cub Cadets, and Craftsman models.

• Matches 951-05221 carburetor variants for 21-inch, 5.0 hp Powermate tillers
• Also suited for 651-05221 carburetor variants and assorted 140cc Yard Machines/MTD/Troy-Bilt/Cub Cad models

All-in-One kit and convenience

By bundling air filtration, priming, fuel delivery, and sealing parts, this kit saves time and reduces the need to source items separately. It is designed to streamline installation and maintenance tasks for busy outlets or homeowners.

• Includes air filter, primer pump, fuel filter, 2 ft fuel line, spark plug, and gasket set
• Gaskets and clamps are provided for a complete installation

Ready to run and tested performance

The carburetor arrives factory tuned, aiming to minimize setup steps after installation. It is designed to deliver dependable performance consistent with similar original components, thanks to careful manufacturing and testing practices.

Durability and materials

Key materials include brass components, a zinc-plated float bowl, a high-density plastic float, and an anodized aluminum body. These choices are intended to resist heat, corrosion, and wear over time, supporting durable, repeatable operation.

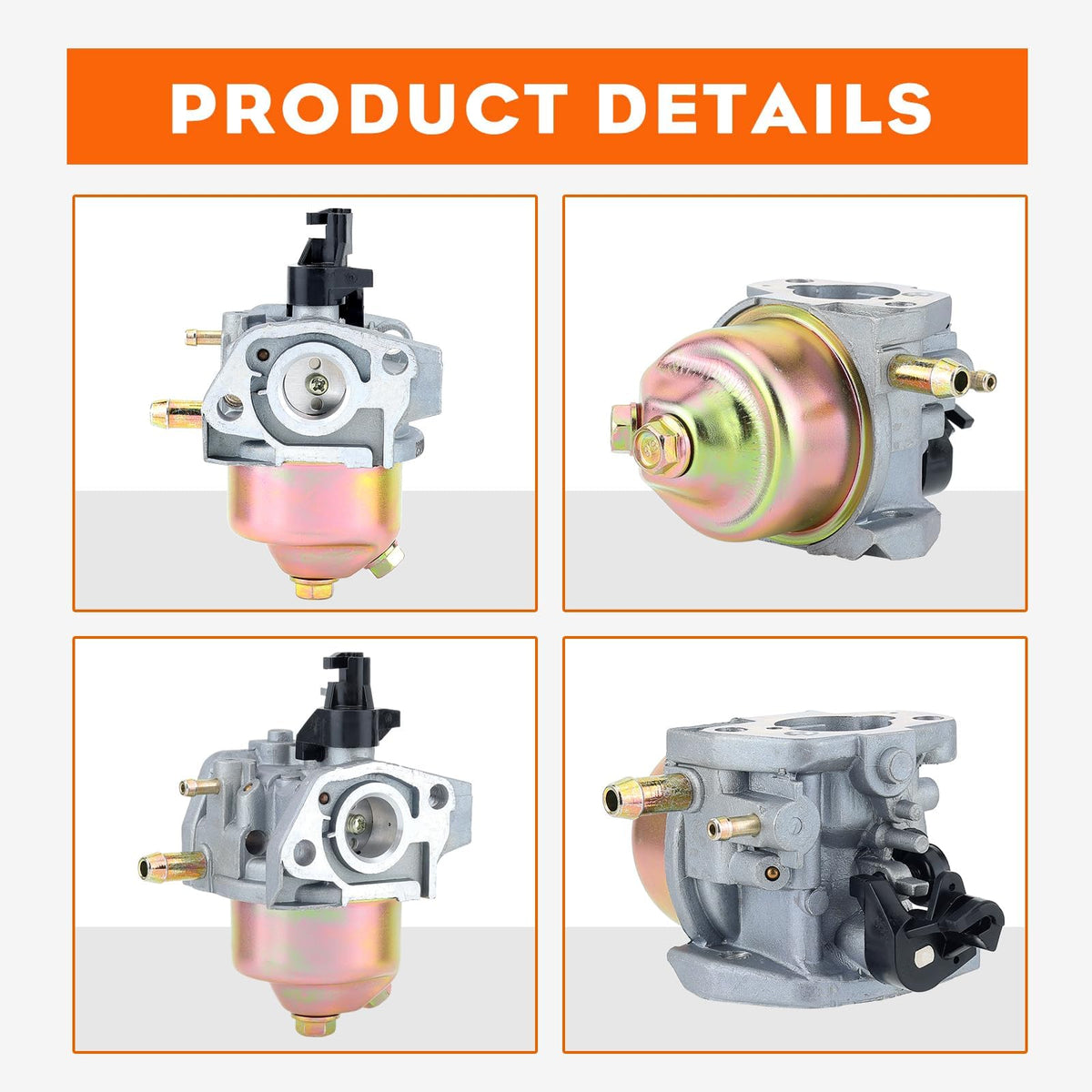

Fit, dimensions, and specs

Practical mounting and flow specifications help you confirm compatibility with your engine layout:

• Mounting hole distance: 43 mm (center to center)
• Throttle bore: 15.7 mm
• Choke bore: 25.8 mm
• Fuel inlet line: 7.8 mm
• Primer line: 4 mm

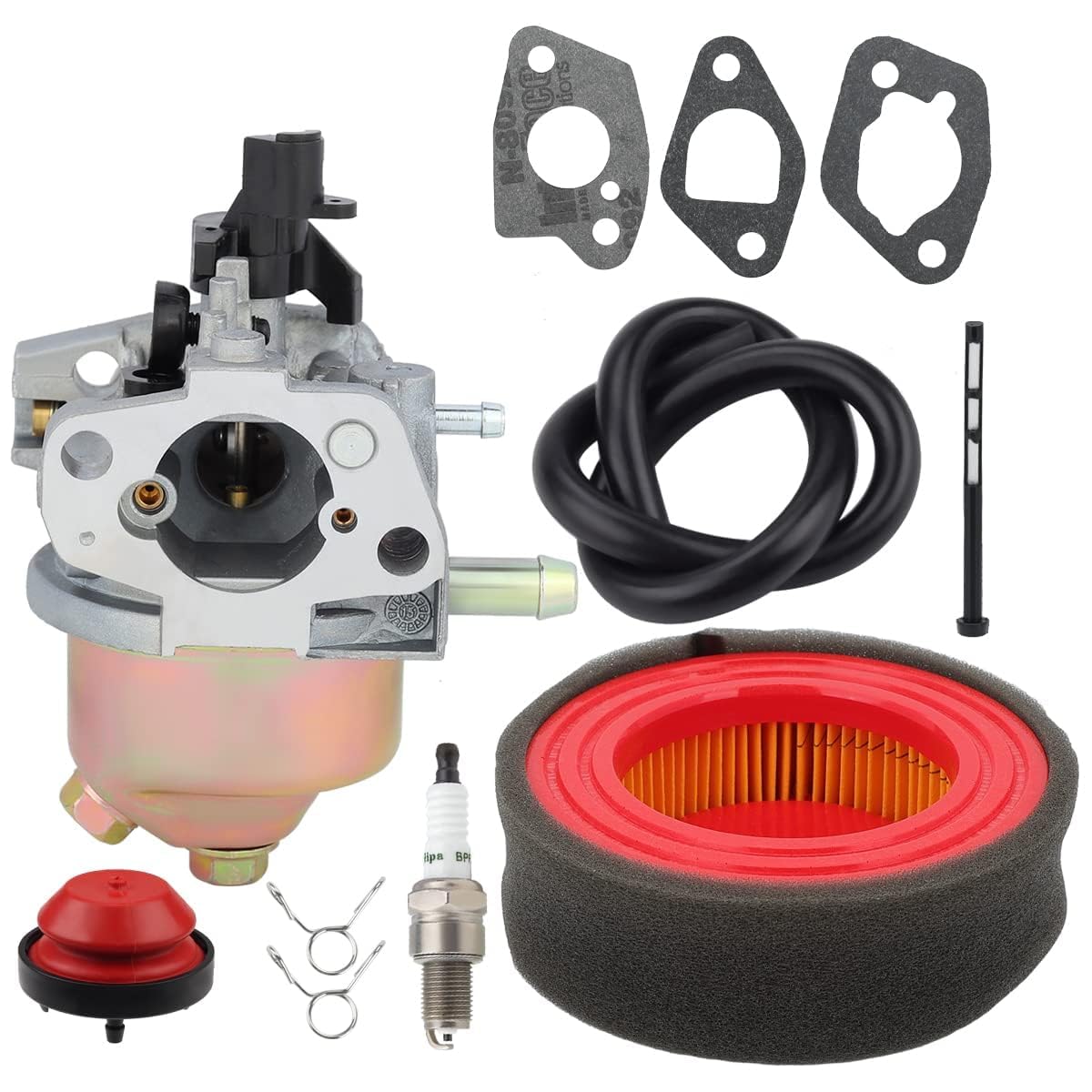

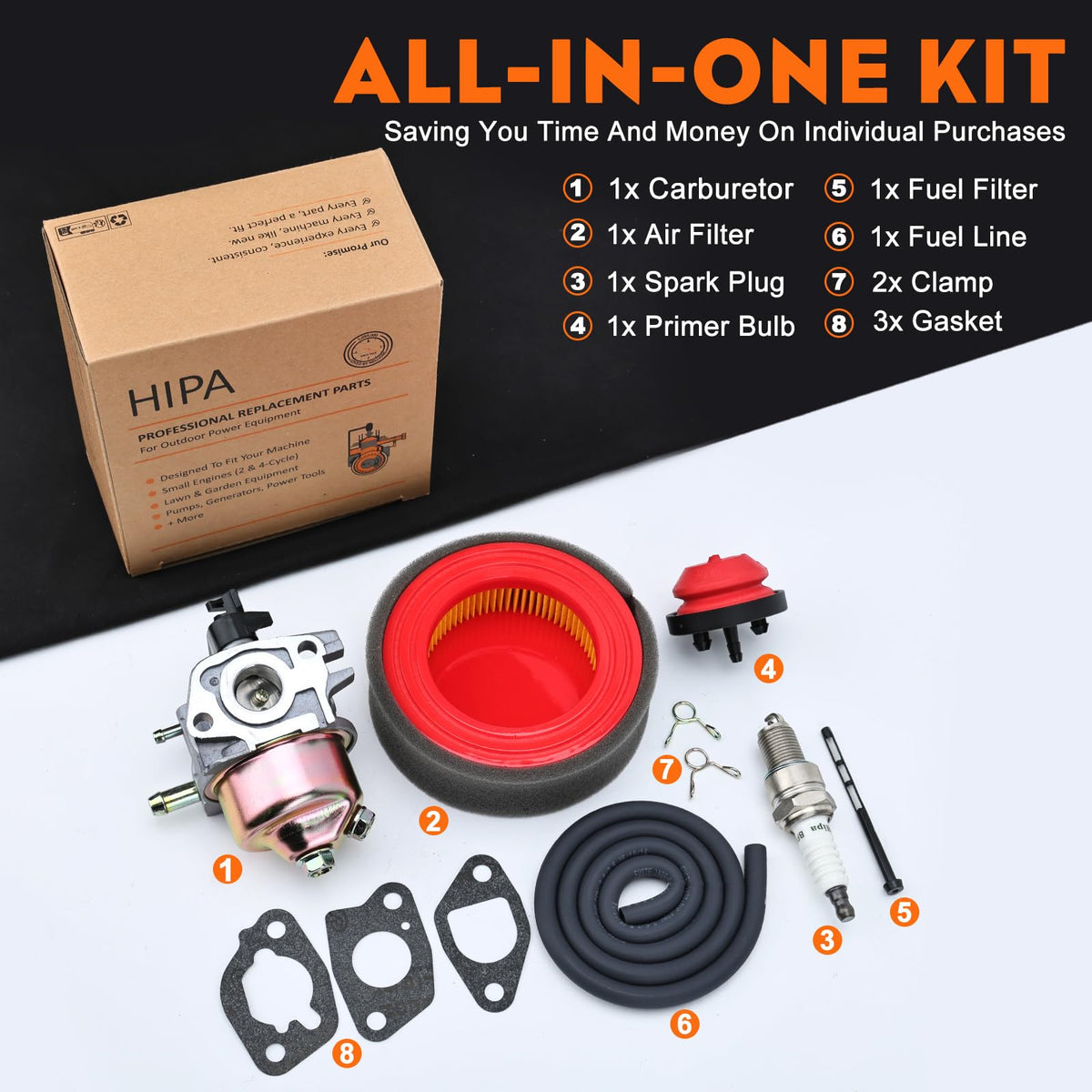

What’s included

• Hipa carburetor x1
• Air filter x1
• Primer pump x1
• Fuel filter x1
• 2 ft fuel line x1
• Spark plug x1
• Gasket set x3
• Fuel line clamps x2

Note: packaging may vary during updates, but the product inside remains identical in quality and performance.
