AeternaSol 45-Inch Solar Panel Mount Brackets – Adjustable Tilt for 100-400W Panels, 2400Pa Windproof

Overview

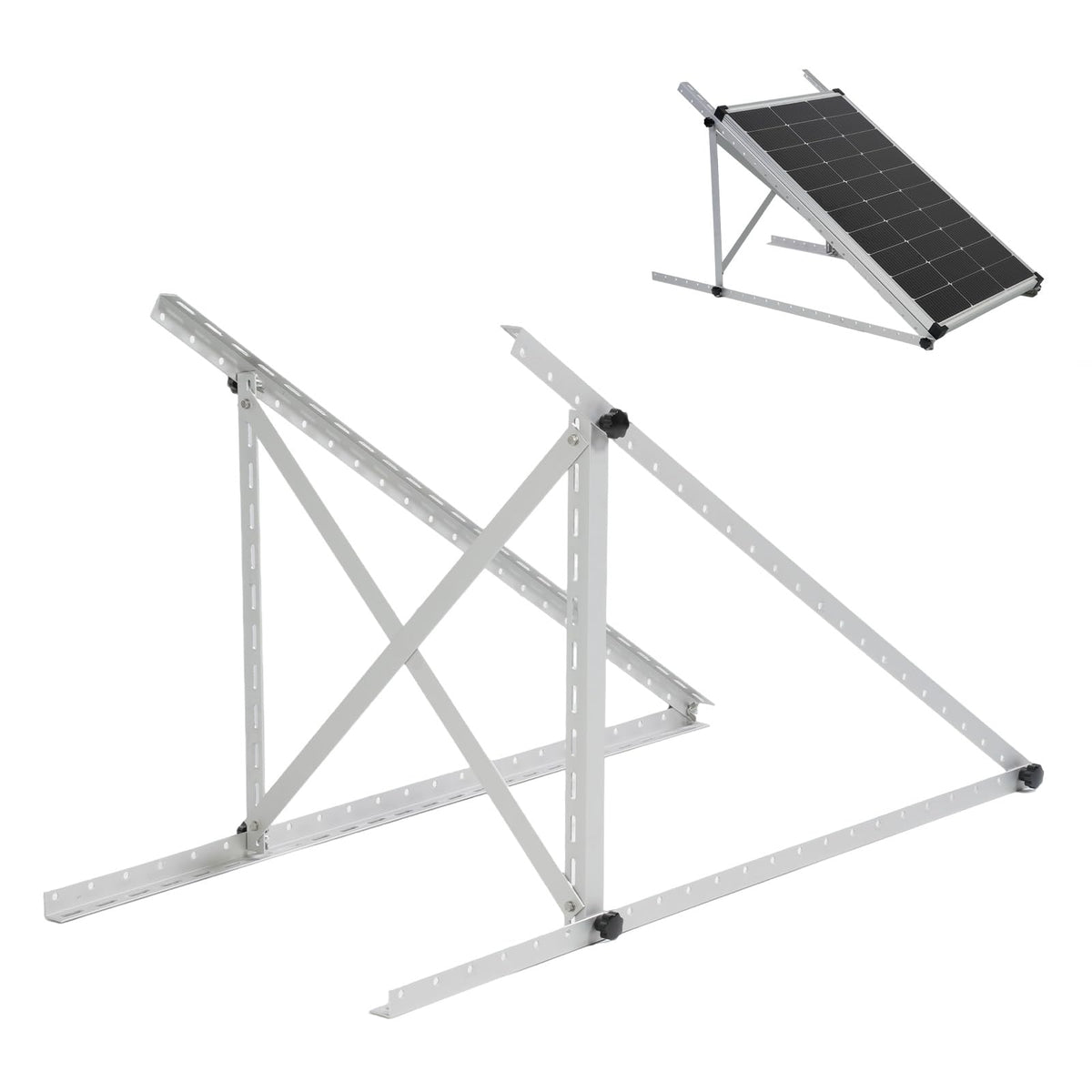

The AeternaSol 45-inch Solar Panel Mount Brackets with Cross Beams are designed to securely hold 100-400W panels across a range of surfaces. Constructed from durable aluminum alloy with triangular bracing, they pair sturdy performance with lightweight handling, built to tackle diverse climates and environments.

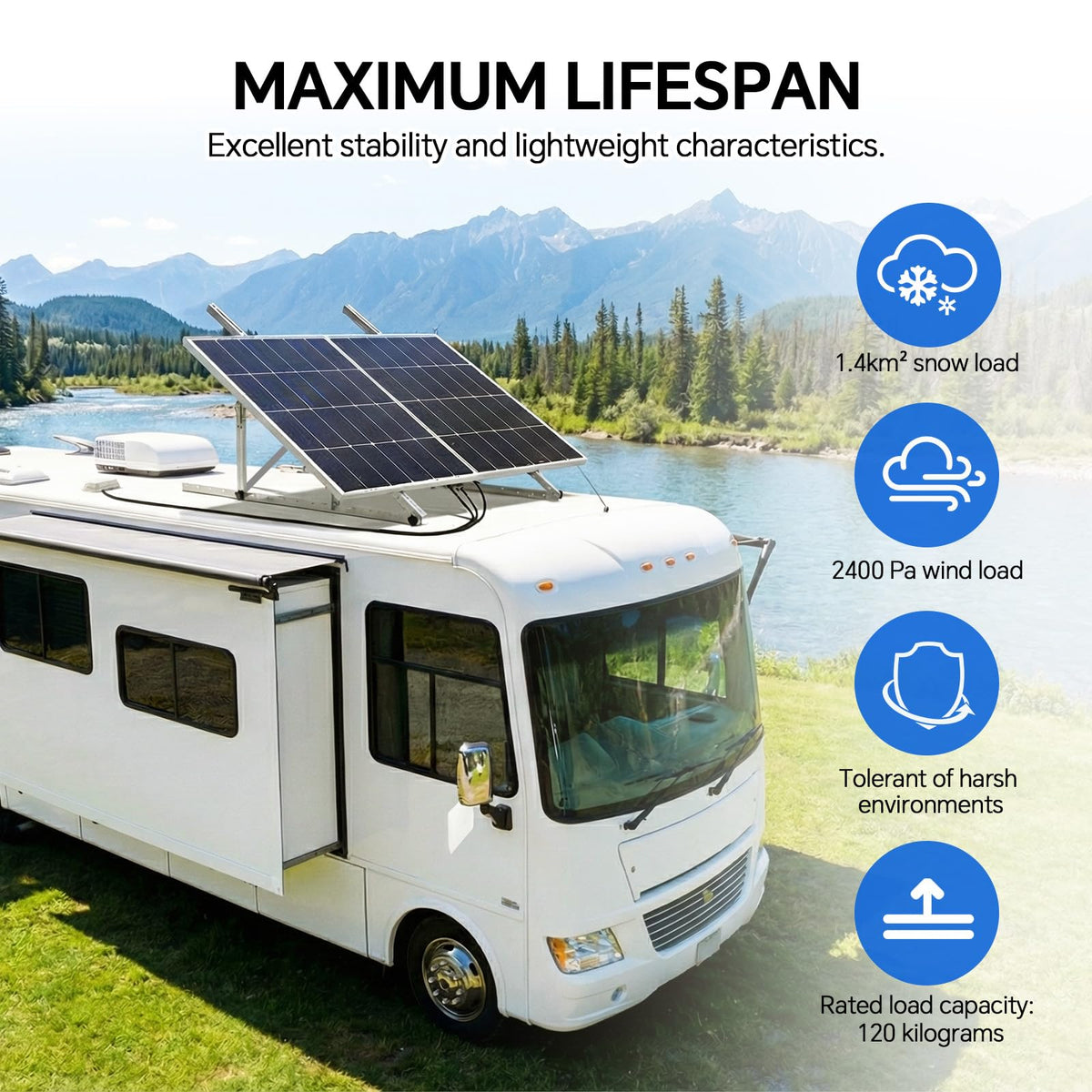

Rugged durability you can trust

These brackets withstand demanding conditions: wind loads up to 2400Pa, snow loads of 1.4 kN/m², and a load bearing capacity of 120 kg. An anodized finish paired with a marine-grade anti-corrosion layer passes a 3,000-hour salt spray test, helping them endure desert heat, coastal humidity, and cold winters for 10+ years.

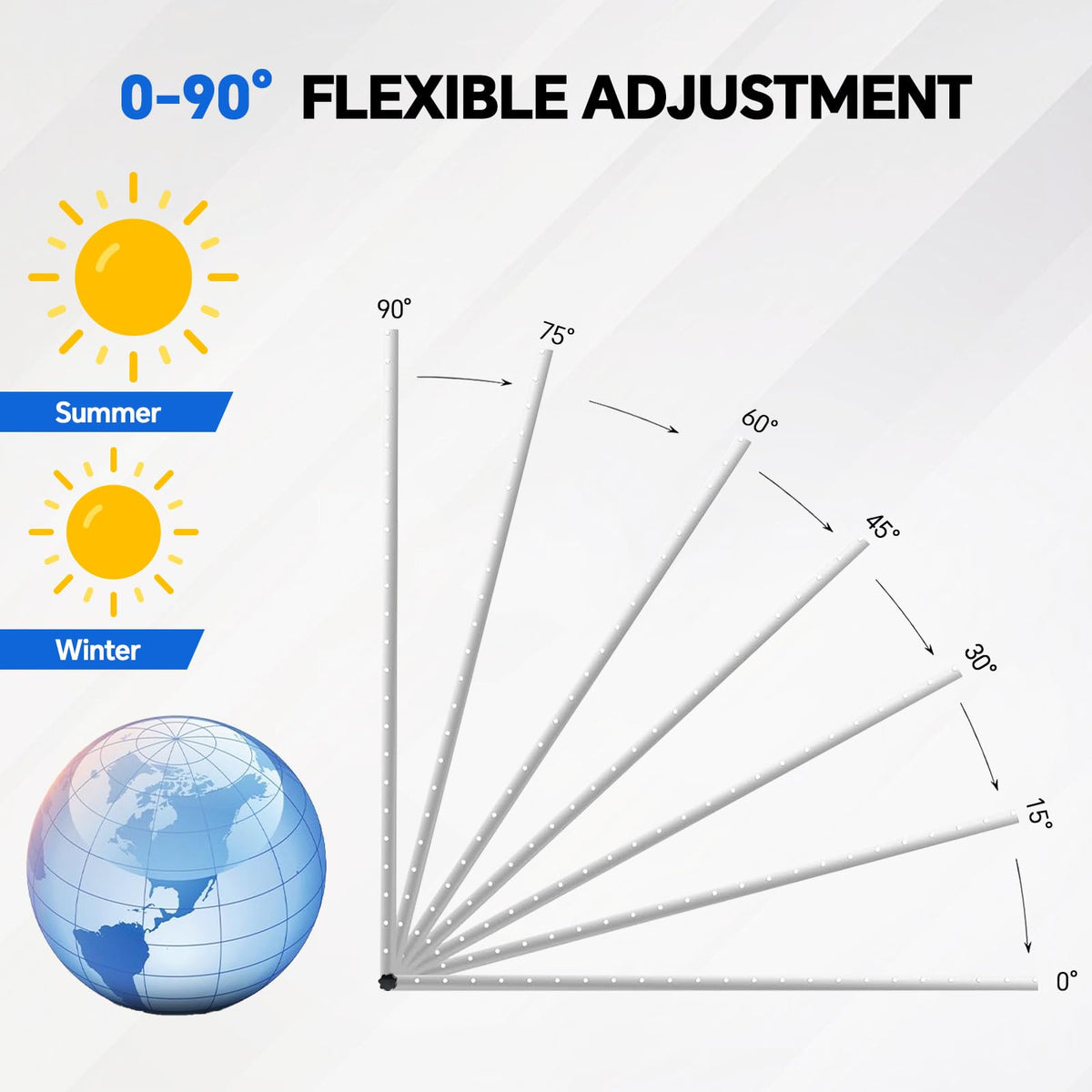

Flexible tilt to maximize energy

The 0°–90° adjustment lets you tailor the angle for different seasons and locations, with the potential to boost energy capture versus fixed-angle setups. When not in use, the system folds compactly for transport and safe storage. A secure locking mechanism enhances safety around heavy panels.

Energy capture potential

With adjustable tilt, you can optimize sun exposure and may see up to a 50% increase in output compared with some fixed-angle configurations, depending on your site and orientation.

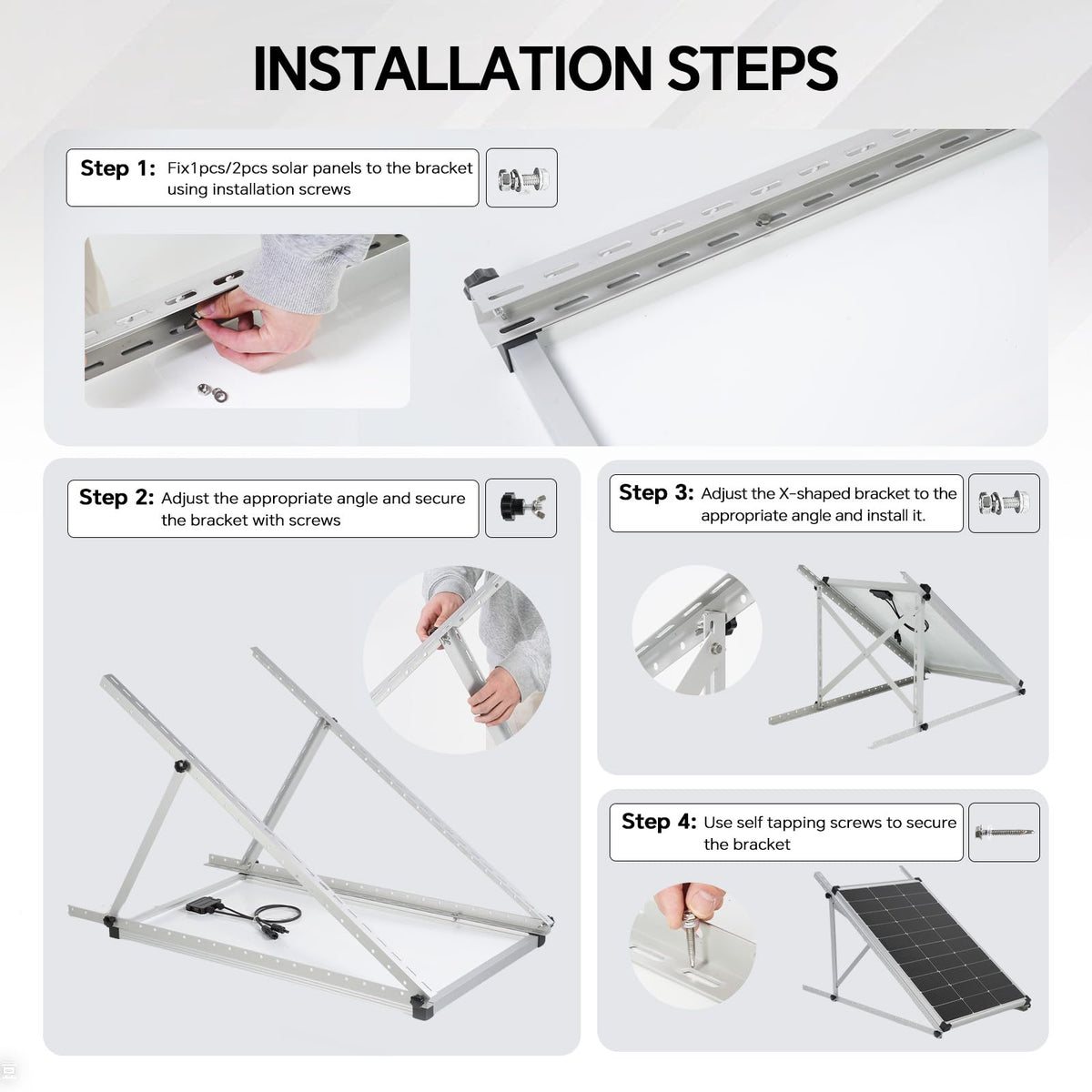

Easy, versatile installation

Designed for both horizontal and vertical mounting, the kit includes precision pre-drilled holes and practical hardware—M8 knob screws, M8 wing nuts, bolts, nuts, washers, and self-drilling screws—so you can mount on roofs, walls, balconies, boats, campers, caravans, or ground sites with ease.

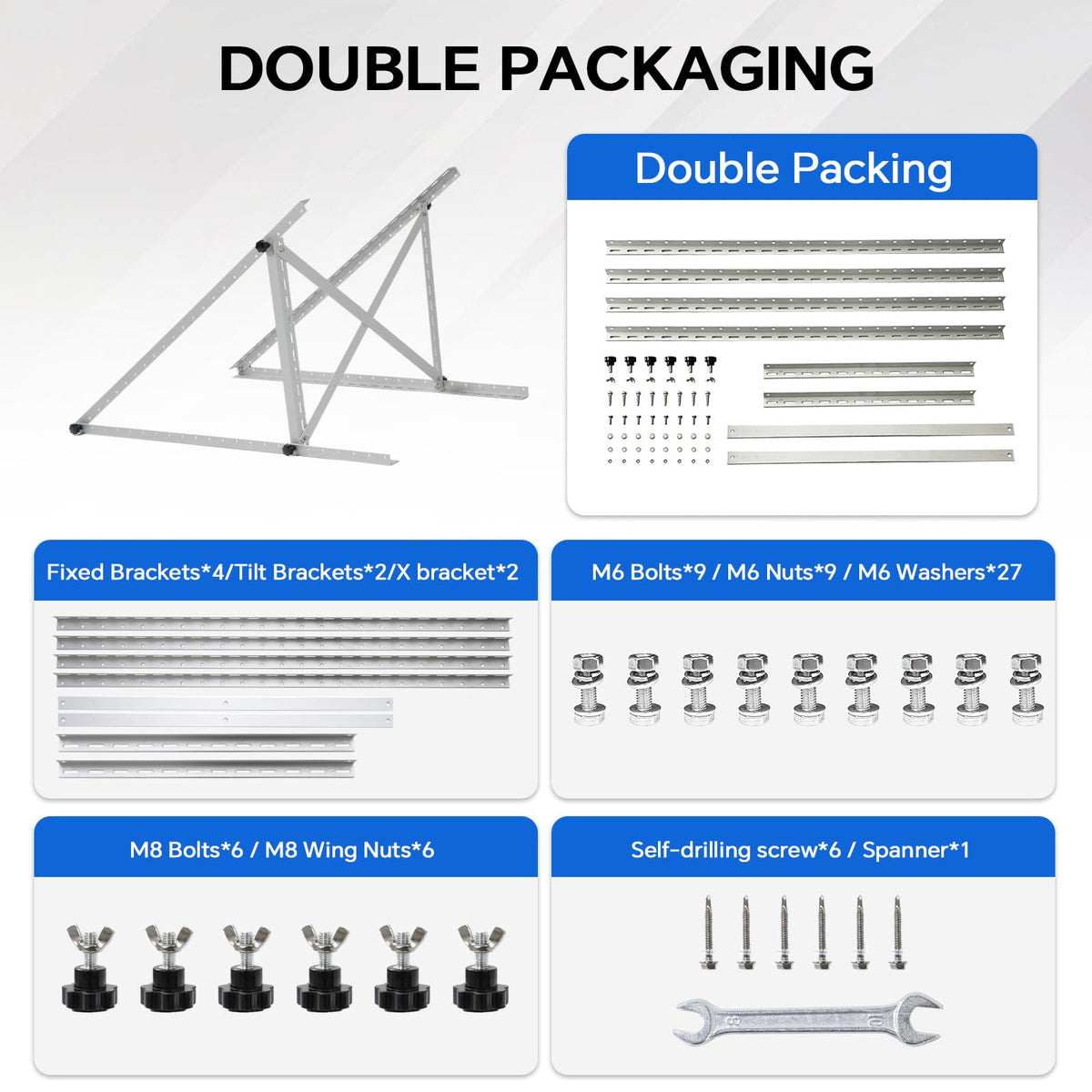

What’s in the box

• Four fixed brackets
• Two tilt brackets
• Nine M6 bolts, Nine M6 nuts, Twenty-seven M6 washers
• Six M8 bolts, Six M8 wing nuts
• Six self-drilling screws

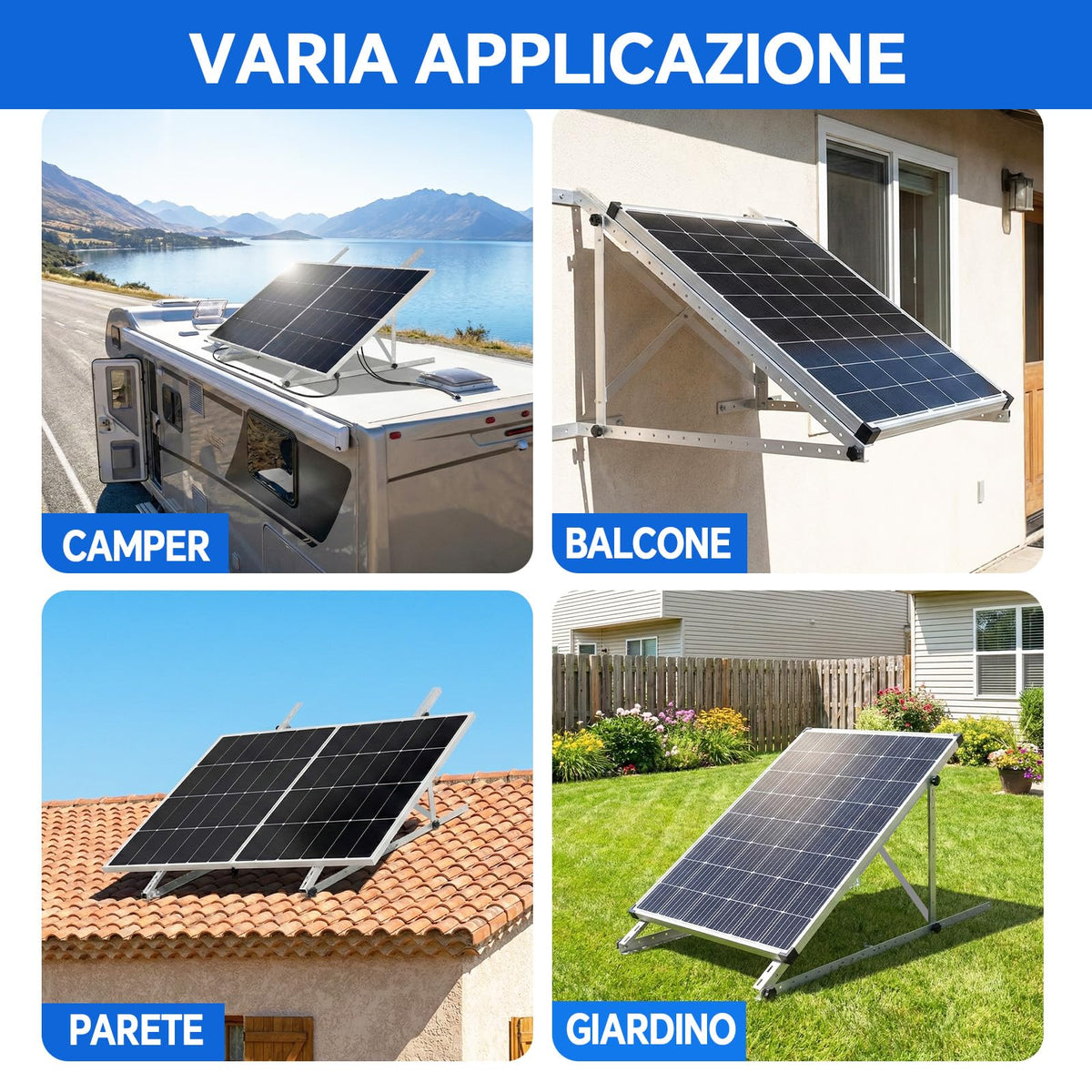

Real-world versatility

Whether you’re on a rooftop, a marine vessel, a camper, or a ground-mounted setup in the garden, this mounting system adapts to your space. It’s built for longevity, with a focus on stability, portability, and straightforward assembly—ideal for users who value practical, durable solar hardware.
